Stationary Engineer Practice Quiz

The correct answer is internal inspection. The reason for this is that the shell of the HRT is exposed to the fire, which can cause damage such as scale, bulging, and blisters. To ensure the safety and proper functioning of the HRT, a careful internal inspection is necessary. This inspection allows for the identification of any potential issues or damage that may have occurred due to the exposure to fire. By conducting regular internal inspections, any problems can be addressed and resolved promptly, preventing further damage or potential hazards.

Water hammer is caused by quickly opening a steam valve. When a steam valve is rapidly opened, it causes a sudden change in pressure and temperature in the connected piping. This sudden change can lead to vibration, noise, or even pipe rupture.

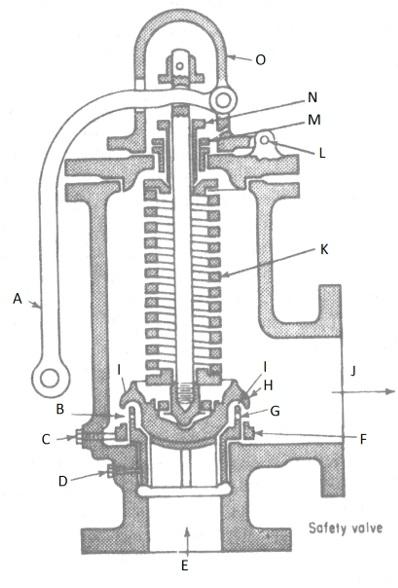

The blowback adjusting ring is used to control the amount of blowback on the safety valve. This means that it regulates the amount of pressure that is allowed to escape through the safety valve, preventing excessive blowback and ensuring the valve functions properly. By adjusting the blowback adjusting ring, the operator can fine-tune the safety valve to maintain the desired pressure level and prevent any potential damage or malfunction.

When a furnace baffle breaks, the gases short-circuit one or more passes, causing excessive flue gas temperature. This means that the baffle, which is designed to direct the flow of gases, is no longer functioning properly. As a result, the gases are not being properly cooled down and are instead reaching higher temperatures. Flue gas refers to the gases that are produced during the combustion process and are released through the flue or chimney.

A centrifugal pump can be started with the discharge valve shut because it uses centrifugal force to move the fluid. When the pump is started, the impeller spins rapidly, creating a centrifugal force that pushes the fluid towards the outer edges of the impeller. This force allows the fluid to be pushed through the pump even with the discharge valve shut.

A dual Duct AHU has hot and cold Ducts connected to a Mixing Box. The Mixing Box is responsible for mixing the hot and cold air streams to achieve the desired temperature before supplying it to the conditioned space. This allows for precise control over the temperature of the supplied air.

Scale accumulation on the waterside of a firetube boiler can lead to overheating. When scale builds up on the boiler tubes, it acts as an insulator, preventing efficient heat transfer. This can cause the tubes to overheat, leading to potential damage and reduced efficiency of the boiler. Overheating can also result in the tubes becoming weakened and more prone to failure, posing a safety risk. Therefore, it is important to regularly clean and remove scale from the waterside of a firetube boiler to prevent overheating and maintain optimal performance.

A cylindrical cup rotating at high speeds is used in a rotary cup burner. This type of burner is commonly used in industrial applications to efficiently and evenly distribute fuel for combustion. The rotation of the cup creates centrifugal force, causing the fuel to be evenly distributed and atomized, resulting in a more efficient and controlled combustion process.

In an open feedwater heater, steam and water are in direct contact. This means that the steam and water come into direct physical contact with each other, allowing for efficient heat transfer between the two. This direct contact allows the steam to condense and transfer its heat energy to the water, resulting in an increase in the temperature of the water.

In a zeolite water softener, calcium and magnesium ions are exchanged for sodium ions. Zeolite is a type of mineral with a porous structure that allows it to trap and exchange ions. When hard water passes through the zeolite resin bed, the calcium and magnesium ions are attracted to the zeolite and are replaced by sodium ions. This process effectively softens the water by reducing the concentration of calcium and magnesium ions. The softened water then flows out of the system, while the calcium and magnesium ions are retained in the zeolite resin bed, forming a soft salt sludge that can be easily removed by bottom blowdown.

One grain is equal to 17.1 parts per million. Therefore, 7,000 grains equals one pound.

A through stay differs from a diagonal stay in that it runs the entire length of the boiler. This means that the through stay extends from one end of the boiler to the other, providing support and stability along the entire length. In contrast, a diagonal stay may only run diagonally across a portion of the boiler, providing support in a specific area.

The operation of a black liquor boiler is known for its generation and recovery of steam and soda ash. The black liquor, a byproduct of the pulp and paper industry, is burned in the boiler to produce steam, which can be used for various purposes such as power generation or heating. Additionally, the process also helps in recovering soda ash, which is a valuable chemical used in various industrial applications.

Parts per million (ppm) is a unit used to express the concentration of a substance in a solution. It represents the number of parts of the substance per one million parts of the solution. In this case, one grain is equal to 17.1 parts per million.

When there is too much air present in a combustion process, it can cause incomplete burning of the fuel. This incomplete burning produces dense, white smoke.

Comparing the mill test report with the markings on the material is a form of visual inspection of welding. This involves visually examining the material and comparing it with the documented information to ensure that it meets the required specifications and standards. It does not involve any chemical, ultrasonic, or liquid penetrating techniques.

A stay that is shorter than 8" and threaded is required to have a tell tale hole.

The pipes connecting the water column to the boiler must have a minimum diameter of 1 inch. This is necessary to ensure proper flow and pressure of water between the water column and the boiler. A smaller diameter pipe may not be able to handle the required volume of water, leading to inadequate water supply and potentially causing issues with the boiler's operation.

According to the ASME code, a HTHW (High Temperature Hot Water) boiler is defined as a boiler that operates above 160 PSI and 250 degrees Fahrenheit.

The operation of a black liquor boiler is known for its steam generation, which refers to the production of steam as a result of the boiler's operation. Additionally, the boiler is also known for its heat recovery of soda ash, which means that it is able to recover and utilize the waste heat produced during the process to generate soda ash.

If there is an obstruction in the bottom connection to the water column, it will prevent the water from flowing freely. As a result, when a gauge glass blow down is performed, the water level in the gauge glass will rise slowly instead of quickly decreasing. This is because the obstruction hinders the water from being discharged efficiently, causing a delay in the water level adjustment in the gauge glass.

Today, most packaged watertube boilers follow one of the three designs, which are referred to as A, D, and O types.

Bagasse is the fibrous residue left after extracting juice from sugar cane. It is a byproduct of the sugar cane industry and is commonly used as a fuel in power plants. Therefore, the waste products from sugar cane, which include bagasse, are used in a power plant.

A non-return valve may be used instead of a stop valve that is closest to the boiler. A non-return valve allows fluid or gas to flow in only one direction, preventing backflow. In this case, it would prevent any fluid or gas from flowing back into the boiler when the stop valve is closed. Using a non-return valve closest to the boiler ensures that it is positioned in the most effective location to prevent backflow.

Anthracite coal is known for its high percentage of fixed carbon. Fixed carbon refers to the carbon content in coal that remains after volatile matter and moisture have been removed. This high carbon content contributes to the coal's heating potential and makes it a valuable fuel source.

An Adamson Ring is a method used to support the Morrison Tube in a Scotch Marine Boiler. This means that the correct answer is "Adamson" as it is the specific type of ring used for this purpose.

The evaporator receives medium temperature liquid refrigerant because the purpose of the evaporator is to absorb heat from the surrounding air or water, causing the refrigerant to evaporate and turn into a gas. This heat absorption process is more efficient when the refrigerant is in its liquid state.

A terminal reheat AHU delivers air at a constant temperature of 55 degrees. This is achieved by using a reheat coil connected to the thermostat, which allows for the adjustment of the air temperature to maintain comfort in the space.

Superheaters are classified into radiant and convection types based on the type of heat they absorb. Radiant superheaters absorb heat through radiation, which is the transfer of heat through electromagnetic waves. Convection superheaters, on the other hand, absorb heat through convection, which is the transfer of heat through the movement of fluids or gases. Therefore, the correct answer is radiant and convection.

Amines are added to the boiler to prevent steam line and condensate line corrosion. These chemicals are used because they will boil-off with the steam.

A power boiler is a type of boiler that operates at pressures greater than 15 psi, or a hot water boiler that operates above 160°F or 250°F.

The correct answer is "bottom blowdown." On HRT boilers, the shell is pitched 1 to 2 inches towards the back of the boiler to produce a more effective bottom blowdown of the boiler. This means that any sediment or impurities that settle at the bottom of the boiler can be easily drained and removed through the bottom blowdown process. This helps to maintain the efficiency and performance of the boiler by preventing the buildup of harmful deposits.

Calcium and magnesium bicarbonate produce temporary hardness. Temporary hardness refers to the presence of dissolved calcium and magnesium bicarbonate ions in water, which can cause scale buildup on surfaces and reduce the effectiveness of soaps and detergents. This type of hardness can be easily removed by boiling the water or using a water softener.

Operating a boiler at temperatures 10°F to 20°F above the design temperature for a long period of time can cause a reduction in its lifespan by 10 to 20 years.

Sulfur in the soot combines with moisture from condensation to form sulfurous acid. This acid is highly corrosive to all steel structures present between the economizer and the stack.

The statement in the question suggests that there is no change in density between water and steam above the critical pressure. This indicates that there is no phase change occurring, as the density of water and steam would be different if vaporization was taking place. The term "Latent Heat of vaporization" refers to the amount of heat energy required to convert a liquid into a vapor, and since there is no vaporization happening in this scenario, the latent heat of vaporization would not be applicable.

The minimum size for the connection between the gauge glass and the water column is 1/2". This means that the diameter of the connection should be half an inch. It is important to have a proper size for the connection to ensure that there is adequate flow of water between the gauge glass and the water column. Having a smaller size could restrict the flow, while a larger size may lead to leakage or improper readings. Therefore, 1/2" is the correct minimum size for the connection.

Water at its boiling point is considered a saturated liquid because at this temperature, it is in equilibrium with its vapor phase. This means that the liquid and vapor phases coexist and the liquid is saturated with vapor molecules. Any additional heat added to the system will cause the liquid to transition into a vapor phase.

The restriction in circulation due to a steam pocket inside the pump is known as "steam bound." Steam binding occurs when steam pockets form within the pump, leading to a decrease in the pump's efficiency and potential damage. The steam pockets hinder the normal flow of liquid, causing disruptions in circulation. This phenomenon is associated with issues such as cavitation, where the formation and collapse of vapor bubbles result in mechanical stress and damage to pump components. Proper pump design, operation, and maintenance practices are crucial to prevent steam binding and related problems.

Light domestic fuel oil is commonly referred to as #1 fuel oil. This type of fuel oil is lighter in viscosity and has a lower sulfur content compared to other fuel oils. It is commonly used for residential heating purposes and is also known as "kerosene" or "home heating oil".

The high limit control has two types of reset mechanisms: automatic reset and manual reset. In this case, the correct answer is "manual reset; operating." This means that if the operating control has malfunctioned, the manual reset mechanism on the high limit control will call attention to the issue.

A colloidal is a gelatin-like substance that has very small particles in suspension. These particles are usually less than 0.20 microns in size.

Caustic soda and soda ash are added to the boiler to remove oil. Caustic soda is a strong alkaline compound that helps to break down the oil and emulsify it, making it easier to remove. Soda ash, also known as sodium carbonate, is a chemical compound that helps to neutralize acids and further aid in the removal of oil from the boiler. Together, these two substances work effectively to remove oil and maintain the cleanliness of the boiler.

When a pump is used to circulate water through a heating system, it creates forced convection. Forced convection refers to the movement of fluid (in this case, water) due to an external force (the pump). The pump forces the water to circulate through the heating system, allowing it to transfer heat and warm the space.

Hardness is a measure of the concentration of calcium and magnesium ions in solution. These ions contribute to the overall hardness of water. Calcium and magnesium ions can come from various sources, such as dissolved minerals in the ground or rocks. The presence of these ions can affect the taste, appearance, and performance of water in various applications, such as in industrial processes or household use. Therefore, measuring the concentration of calcium and magnesium ions is important in determining the hardness of water.

Rectifying phototubes and lead sulfide phototubes are both types of photodetectors that can sense and detect light. In the context of the question, they are used to prove the presence of a flame in the boiler. Since flames emit visible light, these phototubes are able to detect and sense this visible light, indicating the presence of a flame. Therefore, the correct answer is visible light.

The compression ratio (CR) of a refrigeration or compression system is calculated by dividing the absolute discharge pressure (P2) by the absolute suction pressure (P1):



CR = P2 / P1



In this case, you provided the pressures in psi, but to calculate the compression ratio, we need to convert them to absolute pressures in psi (psia). Absolute pressure is the sum of the gauge pressure and atmospheric pressure (14.7 psi at sea level).



Absolute discharge pressure (P2) = 148 psi + 14.7 psi = 162.7 psi

Absolute suction pressure (P1) = 16 psi + 14.7 psi = 30.7 psi



Now, we can calculate the compression ratio:



CR = P2 / P1

CR = 162.7 psi / 30.7 psi



CR ≈ 5.3



So, the compression ratio of the refrigerant system is approximately 5.3:1.

Refrigerant cylinders, such as those containing R410A, follow a specific color-coding system to facilitate easy identification and to prevent mishandling. For R410A, a widely used refrigerant in air conditioning systems, the cylinder is colored rose. This standardization of colors helps technicians quickly recognize different types of refrigerants during installation or maintenance procedures. The rose color specifically helps in distinguishing R410A from other refrigerants which may have similar applications but different environmental impacts and handling requirements. Proper identification ensures safe usage, compliance with regulations, and efficient system performance.

The heating surfaces of a boiler are responsible for receiving heat. These surfaces are designed to absorb heat energy from the combustion process and transfer it to the water or steam in the boiler. Therefore, the correct answer is "receiving".

Boiler stop valves over 2" diameter must have an outside screw and yolk. This configuration allows for easy operation and control of the valve. The outside screw refers to the screw mechanism that moves the valve stem in and out, while the yolk is the handle or wheel that is used to turn the screw. This design ensures that the valve can be easily opened and closed, providing efficient and reliable control over the flow of steam or water in the boiler system.

Sodium sulfite is used to internally remove oxygen from the boiler.

A supercritical boiler is a type of boiler that operates at pressures exceeding 3206.2 pounds per square inch absolute (psia) or temperatures exceeding 705.4 degrees Fahrenheit (°F). This means that the boiler is able to operate at higher pressures and temperatures, which allows for more efficient and effective heat transfer. By operating in the supercritical state, the boiler can achieve higher thermal efficiencies and generate more power.

Beading prevents the tube end from being overheated and being burned off. Beading is a process in which a raised ridge or bead is created on the edge of a tube or pipe. This ridge helps to secure the tube end and provides additional strength and stability, preventing it from overheating and being burned off. The bead acts as a barrier, protecting the tube end from excessive heat and potential damage.

The correct answer is "boiler efficiency." Boiler efficiency refers to the ratio of the heat output from the boiler to the heat input into the boiler. It is a measure of how effectively the boiler converts fuel into useful heat energy. A higher boiler efficiency indicates that the boiler is able to extract more heat from the fuel, resulting in lower fuel consumption and reduced energy waste.

A high pressure steam boiler must have an ASME "S" stamp. The ASME "S" stamp indicates that the boiler has been designed, constructed, and inspected in accordance with the ASME Boiler and Pressure Vessel Code Section I, which specifically covers power boilers. This stamp ensures that the boiler meets the necessary safety and quality standards for high pressure steam applications.

The correct answer is 19. Prior to entering a confined space, it is important to ensure that there is a sufficient amount of oxygen present. The minimum amount of oxygen required for safe entry into a confined space is typically around 19 percent. Oxygen levels below this can be dangerous and may lead to asphyxiation or other health hazards. Therefore, it is crucial to monitor and confirm the oxygen levels before entering a confined space to ensure the safety of individuals.

An ultraviolet scanner is not affected by the light given off by hot refractories. Refractories are heat-resistant materials used in high-temperature industrial processes, such as furnaces. Infrared scanners rely on detecting the heat emitted by objects, including refractories, whereas ultraviolet scanners use ultraviolet light to detect and analyze different materials. Therefore, the ultraviolet scanner is not affected by the light emitted by hot refractories.

The correct answer is "alarm whistle." An alarm whistle mounted on the Water Column will sound an alarm if the water level is too high or too low. This type of whistle is designed to alert individuals nearby when there is an issue with the water level, ensuring prompt action can be taken to address the problem.

The turndown ratio refers to the ratio between the maximum and minimum input rates of fuel. It is a measure of the flexibility of a system or device to adjust its fuel input. A higher turndown ratio indicates a greater range of control and flexibility in adjusting the fuel input rate, while a lower turndown ratio means a more limited range of control. Therefore, the turndown ratio is the correct term to describe this ratio.

Waterwalls consist of relatively close-spaced vertical tubes forming the four walls of the furnace. These tubes are designed to absorb heat from the combustion process and transfer it to the surrounding water, creating steam. Waterwalls are an important component in boilers and furnaces as they help in the efficient transfer of heat and ensure the proper functioning of the system.

The high limit control is the last form of over-pressure protection on the boiler before the safety valve is activated. This control is set to a specific pressure limit, and if the pressure exceeds this limit, it will automatically shut down the boiler to prevent any potential damage or hazards. It acts as a safeguard to ensure that the pressure within the boiler does not reach dangerous levels.

The color of the cylinder containing R-123 is light gray before 2020.

The color of the cylinder containing R-134a is light blue before 2020.

The turn down ratio refers to the ratio between the maximum and minimum fuel input rates. This ratio is used to measure the flexibility of a fuel system, as it determines the range of fuel flow that can be achieved. A higher turn down ratio indicates a greater range of fuel flow, allowing for more precise control of the combustion process. Therefore, the turn down ratio is the correct term for the given description.

Bent tubes are more flexible than straight tubes because they can easily bend and conform to different shapes and angles. This flexibility allows them to be used in various applications where straight tubes would not be able to fit or adapt. Additionally, the ability to bend and flex makes bent tubes more resistant to breakage or damage caused by external forces or vibrations. Therefore, bent tubes offer better flexibility and versatility compared to straight tubes.

The flow of liquid in a coil-type boiler is downward through the coils spiral-wound in a counterflow direction to the combustion gases. This means that the liquid enters the top of the coil and flows downward towards the bottom, while the combustion gases flow in the opposite direction. This counterflow arrangement allows for efficient heat transfer between the liquid and the combustion gases, maximizing the boiler's effectiveness.

An air preheater is used to make the final heat recovery from the boiler flue gases and preheat the incoming furnace air for combustion with fuel. This device helps to increase the efficiency of the combustion process by utilizing the waste heat from the flue gases to heat up the incoming air. By preheating the air, less fuel is required to achieve the desired temperature, resulting in energy savings and reduced emissions.

A centrifugal pump uses a volute to convert velocity energy to pressure energy. The volute is a curved casing that surrounds the impeller, which is the rotating component of the pump. As the impeller spins, it creates a centrifugal force that pushes the fluid towards the outer edges of the volute. This causes the fluid to gain pressure energy as its velocity decreases. The volute then directs the high-pressure fluid towards the pump outlet, allowing it to be used for various applications such as water circulation, irrigation, or industrial processes.

The deaerator is an open feedwater heater that is used to remove oxygen from the boiler feedwater. Oxygen in the feedwater can cause corrosion and damage to the boiler system. The deaerator works by heating the feedwater and exposing it to steam, which helps to remove dissolved gases, including oxygen. This helps to protect the boiler system and improve its efficiency.

The three elements that a feedwater regulator senses are feedwater flow, steam flow, and water level. These are important parameters to monitor in order to ensure the proper functioning and control of the feedwater system. By measuring the feedwater flow, the regulator can adjust the flow rate to match the steam demand. Monitoring the steam flow allows for proper control of the steam supply, while monitoring the water level helps prevent overfilling or underfilling of the system.

Creep is the correct answer because it refers to the slow and gradual deformation of a material under constant stress or high temperatures. This can cause cavities to form at the grain boundaries in metal, which then coalesce to form cracks.

The color of the cylinder containing R-12 is white before 2020.

A turbine pump uses guide vanes to convert velocity to pressure energy. Guide vanes are stationary vanes that direct the flow of fluid into the impeller, which then converts the velocity of the fluid into pressure energy. The guide vanes help to control and direct the flow of fluid, ensuring efficient conversion of velocity to pressure.

The presence of free oxygen in the boiler water can lead to pitting attack on the boiler metal surfaces. Pitting corrosion occurs when localized areas on the metal surface become corroded, forming small pits or holes. This type of corrosion is often more severe and can cause rapid deterioration of the metal compared to general corrosion. The presence of free oxygen provides an environment conducive to the formation of corrosion cells, leading to pitting corrosion.

The correct answer is "R." The National Board of Boiler and Pressure Vessel Repair requires an "R" stamp for companies that repair boilers. This stamp signifies that the company has met the necessary qualifications and standards set by the National Board. It ensures that the repairs are done by qualified personnel and that the boilers are safe to use.

A boiler horsepower is a unit of measurement used to indicate the rate at which a boiler can produce steam. In this context, it refers to the evaporation of steam into dry saturated steam. The answer of 34.5 pounds per hour indicates that a boiler with one horsepower can produce 34.5 pounds of dry saturated steam per hour when the water temperature is at 212°F.

A low pressure steam boiler must have an ASME H stamp. This indicates that the boiler is designed and constructed in accordance with the ASME Boiler and Pressure Vessel Code Section IV, which specifically covers low pressure steam heating boilers. The H stamp ensures that the boiler meets the necessary safety standards and regulations for its intended use.

The correct answer is V. According to the ASME code, all boiler safety valves must be stamped with a V stamp. This stamp indicates that the safety valve has been tested and meets the requirements set by the ASME code for pressure relief devices. The V stamp ensures that the safety valve is reliable and will properly relieve excess pressure in the boiler to prevent any potential accidents or damage.

Non-destructive testing refers to a method of evaluating the quality and integrity of a material without causing any physical or chemical changes to it. This technique allows for the examination of the material's soundness without causing any damage or alteration. It is commonly used to detect defects, flaws, or abnormalities in various materials, such as metals, composites, and concrete, without compromising their structural integrity. Visual inspection, indirect sampling, and accumulation testing do not accurately describe the process of testing the material without affecting it physically or chemically.

The three T's for proper fuel combustion are time, temperature, and turbulence. Time refers to the duration of the combustion process, allowing for complete and efficient burning of the fuel. Temperature is necessary to initiate and sustain the combustion reaction. Turbulence is important for mixing the fuel and air, ensuring proper fuel-air ratio and enhancing the combustion process.

A foot valve is a device installed on the suction of a pump to ensure that the suction piping stays full of water. It is designed with a one-way valve that allows water to flow into the pump but prevents it from flowing back out. This helps maintain the prime of the pump, ensuring that it can effectively draw water from the source without any interruptions or air pockets in the suction line.

The correct answer is "Backwash, Brine Rinse, slow / fast rinse, back in service." These are the four steps needed to perform regeneration on a zeolite water softener. First, the system needs to be backwashed to remove any accumulated debris or contaminants. Then, a brine rinse is done to flush out the accumulated hardness minerals from the zeolite resin bed. After that, a slow or fast rinse is performed to ensure that all the brine solution is removed from the system. Finally, the system is put back in service, ready to soften water again.

Waste heat boilers recover the heat in the exhaust from a gas turbine to produce useful steam. This means that they utilize the excess heat generated as a byproduct of a process or system, such as a gas turbine, to generate steam, which can then be used for various purposes. Waste heat boilers are an efficient way to harness and utilize the otherwise wasted heat energy, making them an important component in cogeneration plants.

Enthalpy is a thermodynamic property that represents the total heat content of a system. In this context, the temperature of a liquid minus 32 refers to a change in temperature or a difference in heat content. Therefore, enthalpy is the appropriate term to describe this concept.

If a bulge in a boiler is not down more than 2% of its length, it should be left alone unless the metal is too badly burned. This means that if the bulge is less than 2% of the length of the boiler, it is considered acceptable and does not require any immediate action. However, if the metal is severely damaged or burned, it may need to be addressed regardless of the size of the bulge.
