CCNA – Security Questions Quiz - Quiz, Flashcards & Trivia

1. Which protocol is an open standard protocol framework that is commonly used in VPNs to provide secure end-to-end connections?

PPTP

IPsec

RSA

L2TP

One of the most widely deployed network security technologies today is IPsec over VPNs. It provides high levels of security through encryption and authentication, protecting data from unauthorized access.

Explanation

One of the most widely deployed network security technologies today is IPsec over VPNs. It provides high levels of security through encryption and authentication, protecting data from unauthorized access.

2. Which Cisco Catalyst feature automatically disables the port in an operational PortFast upon receipt of a BPDU?

BackboneFast

UplinkFast

Root Guard

BPDU Guard

BPDU Filter

We only enable PortFast feature on access ports (ports connected to end stations). But if someone does not know he can accidentally plug that port to another switch and a loop may occur when BPDUs are being transmitted and received on these ports.

With BPDU Guard, when a PortFast receives a BPDU, it will be shut down to prevent a loop -> D is correct.

Explanation

We only enable PortFast feature on access ports (ports connected to end stations). But if someone does not know he can accidentally plug that port to another switch and a loop may occur when BPDUs are being transmitted and received on these ports.

With BPDU Guard, when a PortFast receives a BPDU, it will be shut down to prevent a loop -> D is correct.

3. Select the action that results from executing these commands: Switch(config-if)# switchport port-security Switch(config-if)# switchport port-security mac-address sticky

A dynamically learned MAC address is saved in the startup-configuration file.

A dynamically learned MAC address is saved in the running-configuration file.

A dynamically learned MAC address is saved in the VLAN database.

Statically configured MAC addresses are saved in the startup-configuration file if frames from that address are received.

Statically configured MAC addresses are saved in the running-configuration file if frames from that address are received.

The full syntax of the second command is:

switchport port-security mac-address sticky [MAC]

If we don’t specify the MAC address (like in this question) then the switch will dynamically learn the attached MAC Address and place it into your running-configuration -> B is correct.

Explanation

The full syntax of the second command is:

switchport port-security mac-address sticky [MAC]

If we don’t specify the MAC address (like in this question) then the switch will dynamically learn the attached MAC Address and place it into your running-configuration -> B is correct.

4. Which set of commands is recommended to prevent the use of a hub in the access layer?

Switch(config-if)#switchport mode trunkswitch(config-if)#switchport port-security maximum 1

Switch(config-if)#switchport mode trunkswitch(config-if)#switchport port-security mac-address 1

Switch(config-if)#switchport mode accessswitch(config-if)#switchport port-security maximum 1

Switch(config-if)#switchport mode accessswitch(config-if)#switchport port-security mac-address 1

Port security is only used on access port (which connects to hosts) so we need to set that port to “access” mode, then we need to specify the maximum number of hosts which are allowed to connect to this port -> C is correct.

Note: If we want to allow a fixed MAC address to connect, use the “switchport port-security mac-address ” command.

Explanation

Port security is only used on access port (which connects to hosts) so we need to set that port to “access” mode, then we need to specify the maximum number of hosts which are allowed to connect to this port -> C is correct.

Note: If we want to allow a fixed MAC address to connect, use the “switchport port-security mac-address ” command.

5. Which two commands correctly verily whether port security has been configured on port FastEthernet 0/12 on a switch? (Choose two)

SW1# show switchport port-security interface FastEthernet 0/12

SW1# show switchport port-secure interface FastEthernet 0/12

SW1# show port-security interface FastEthernet 0/12

SW1# show running-config

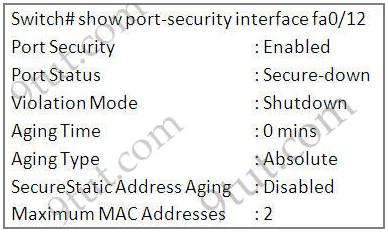

We can verify whether port security has been configured by using the “show running-config” or “show port-security interface ” for more detail. An example of the output of “show port-security interface ” command is shown below:

Explanation

We can verify whether port security has been configured by using the “show running-config” or “show port-security interface ” for more detail. An example of the output of “show port-security interface ” command is shown below:

Submit

6. A network administrator needs to configure port security on a switch. Which two statements are true? (Choose two)

The network administrator can apply port security to dynamic access ports

The network administrator can configure static secure or sticky secure mac addresses in the voice vlan.

The sticky learning feature allows the addition of dynamically learned addresses to the running configuration.

The network administrator can apply port security to EtherChannels.

Follow these guidelines when configuring port security:
+ Port security can only be configured on static access ports, trunk ports, or 802.1Q tunnel ports. -> A is not correct.
+ A secure port cannot be a dynamic access port.
+ A secure port cannot be a destination port for Switched Port Analyzer (SPAN).
+ A secure port cannot belong to a Fast EtherChannel or Gigabit EtherChannel port group. -> D is not correct
+ You cannot configure static secure or sticky secure MAC addresses on a voice VLAN. -> B is not correct.
+ When you enable port security on an interface that is also configured with a voice VLAN, you must set the maximum allowed secure addresses on the port to at least two.
+ If any type of port security is enabled on the access VLAN, dynamic port security is automatically enabled on the voice VLAN.
+ When a voice VLAN is configured on a secure port that is also configured as a sticky secure port, all addresses seen on the voice VLAN are learned as dynamic secure addresses, and all addresses seen on the access VLAN (to which the port belongs) are learned as sticky secure addresses.
+ The switch does not support port security aging of sticky secure MAC addresses.
+ The protect and restrict options cannot be simultaneously enabled on an interface.

(Reference: http://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3550/software/release/12-1_19_ea1/configuration/guide/3550scg/swtrafc.html#wp1038546)

Note: Dynamic access port or Dynamic port VLAN membership must be connected to an end station. This type of port can be configured with the “switchport access vlan dynamic” command in the interface configuration mode. Please read more about Dynamic access port here: http://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3550/software/release/12-1_19_ea1/configuration/guide/3550scg/swvlan.html#wp1103064

Explanation

Follow these guidelines when configuring port security:
+ Port security can only be configured on static access ports, trunk ports, or 802.1Q tunnel ports. -> A is not correct.
+ A secure port cannot be a dynamic access port.
+ A secure port cannot be a destination port for Switched Port Analyzer (SPAN).
+ A secure port cannot belong to a Fast EtherChannel or Gigabit EtherChannel port group. -> D is not correct
+ You cannot configure static secure or sticky secure MAC addresses on a voice VLAN. -> B is not correct.
+ When you enable port security on an interface that is also configured with a voice VLAN, you must set the maximum allowed secure addresses on the port to at least two.
+ If any type of port security is enabled on the access VLAN, dynamic port security is automatically enabled on the voice VLAN.
+ When a voice VLAN is configured on a secure port that is also configured as a sticky secure port, all addresses seen on the voice VLAN are learned as dynamic secure addresses, and all addresses seen on the access VLAN (to which the port belongs) are learned as sticky secure addresses.
+ The switch does not support port security aging of sticky secure MAC addresses.
+ The protect and restrict options cannot be simultaneously enabled on an interface.

(Reference: http://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3550/software/release/12-1_19_ea1/configuration/guide/3550scg/swtrafc.html#wp1038546)

Note: Dynamic access port or Dynamic port VLAN membership must be connected to an end station. This type of port can be configured with the “switchport access vlan dynamic” command in the interface configuration mode. Please read more about Dynamic access port here: http://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3550/software/release/12-1_19_ea1/configuration/guide/3550scg/swvlan.html#wp1103064

Submit

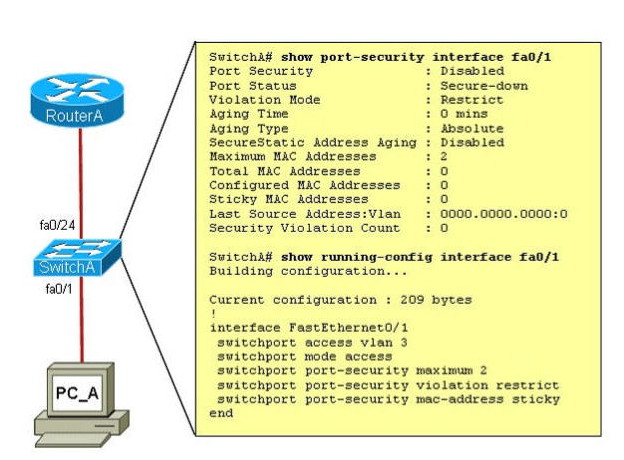

7. Refer to the exhibit. A junior network administrator was given the task of configuring port security on SwitchA to allow only PC_A to access the switched network through port fa0/1. If any other device is detected, the port is to drop frames from this device. The administrator configured the interface and tested it with successful pings from PC_A to RouterA, and then observes the output from these two show commands.

Which two of these changes are necessary for SwitchA to meet the requirements? (Choose two)

Port security needs to be globally enabled.

Port security needs to be enabled on the interface.

Port security needs to be configured to shut down the interface in the event of a violation.

Port security needs to be configured to allow only one learned MAC address.

Port security interface counters need to be cleared before using the show command.

The port security configuration needs to be saved to NVRAM before it can become active.

As we see in the output, the “Port Security” is in “Disabled” state (line 2 in the output). To enable Port security feature, we must enable it on that interface first with the command:

SwitchA(config-if)#switchport port-security

-> B is correct.

Also from the output, we learn that the switch is allowing 2 devices to connect to it (switchport port-security maximum 2) but the question requires allowing only PC_A to access the network so we need to reduce the maximum number to 1 -> D is correct.

Explanation

As we see in the output, the “Port Security” is in “Disabled” state (line 2 in the output). To enable Port security feature, we must enable it on that interface first with the command:

SwitchA(config-if)#switchport port-security

-> B is correct.

Also from the output, we learn that the switch is allowing 2 devices to connect to it (switchport port-security maximum 2) but the question requires allowing only PC_A to access the network so we need to reduce the maximum number to 1 -> D is correct.

Submit

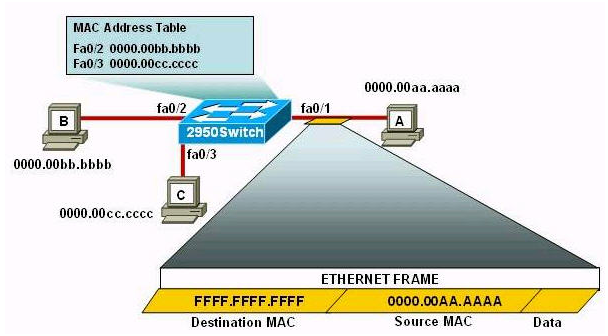

8. Refer to the exhibit. The following commands are executed on interface fa0/1 of 2950Switch. 2950Switch(config-if)#switchport port-security2950Switch(config-if)#switchport port-security mac-address sticky2950Switch(config-if)#switchport port-security maximum 1 The Ethernet frame that is shown arrives on interface fa0/1. What two functions will occur when this frame is received by 2950Switch? (Choose two)

The MAC address table will now have an additional entry of fa0/1 FFFF.FFFF.FFFF.

Only host A will be allowed to transmit frames on fa0/1.

This frame will be discarded when it is received by 2950Switch.

All frames arriving on 2950Switch with a destination of 0000.00aa.aaaa will be forwarded out fa0/1.

Only frames from source 0000.00bb.bbbb, the first learned MAC address of 2950Switch, will be forwarded out fa0/1.

Please read the explanation at http://www.9tut.net/icnd2/icnd2-operations

Explanation

Please read the explanation at http://www.9tut.net/icnd2/icnd2-operations

Submit
