Geography Mapping & Practical Skills #1 - Open
Quizz dealing with scale, direction and military co-oridnates
- 1.

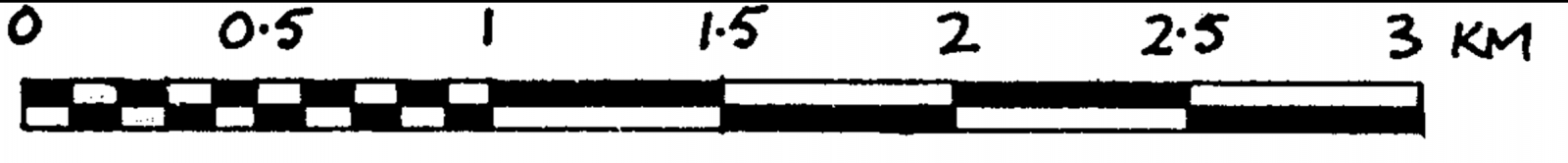

1. The scale in words of the linear scale below is:
- A.
1cm to 500 metres
- B.
1cm to 150 kms
- C.
1:50 000
- D.
1:500
Correct Answer
A. 1cm to 500 metresExplanation
The correct answer is 1cm to 500 metres. This means that on the linear scale, 1 centimeter represents a distance of 500 meters.Rate this question:
-
- 2.
When 1cm on a map is equal to 1km on the earth’s surface, the map scale would read as:
- A.
1:100 000
- B.
1: 1
- C.
1: 10 000
- D.
1: 1000
- E.
1:1 km
Correct Answer
A. 1:100 000Explanation
When 1cm on a map represents 1km on the earth's surface, the map scale would read as 1:100 000. This means that every 1 unit on the map represents 100 000 units on the actual ground. So, for every 1cm on the map, it represents 100 000cm (or 1km) on the earth's surface.Rate this question:
-
- 3.
Which of the following statements are true regarding a scale shown as a representative fraction? 1) the denominator is always one 2) the numerator is always one 3) in case of a representative fraction, the numerator represents the number of units on the map 4) in case of a representative fraction, the numerator represents the number of units on the ground
- A.
1
- B.
2 & 4
- C.
1 & 3
- D.
2 & 3
- E.
1 & 4
Correct Answer
D. 2 & 3Explanation
A scale shown as a representative fraction is a ratio that represents the relationship between distances on a map and distances on the ground. The numerator of the representative fraction represents the number of units on the map, while the denominator represents the number of corresponding units on the ground. Therefore, statement 2 is true because the numerator is always one, and statement 3 is true because the numerator represents the number of units on the map.Rate this question:
-
- 4.
Which of the following statements are true concerning scale maps? 1. large scale maps show relatively small areas of land with good detail 2. small scale maps show large areas of land with much detail 3. large scale maps show relatively large areas of land with good detail 4. small scale maps show relatively large areas of land with little detail 5. small scale maps show relatively small areas of land with little detail
- A.
1 & 2
- B.
3 & 4
- C.
1 & 4
- D.
5
Correct Answer
B. 3 & 4Explanation
Large scale maps show relatively large areas of land with good detail, while small scale maps show relatively large areas of land with little detail. Therefore, statements 3 and 4 are true.Rate this question:
-
- 5.
Refer to the diagram below: What is the direction of point D from point C?
- A.
ESE
- B.
SE
- C.
NW
- D.
SW
Correct Answer
C. NWExplanation
The direction of point D from point C is NW, which stands for northwest. This means that point D is located in the direction between the north and the west from point C.Rate this question:
-
- 6.
Refer to the diagram below: Which point is WNW of point C?
- A.
B
- B.
E
- C.
A
- D.
D
Correct Answer
C. AExplanation
Point A is WNW (West-Northwest) of point C. In the diagram, point C is located towards the north, and point A is positioned towards the west-northwest direction from point C.Rate this question:
-
- 7.

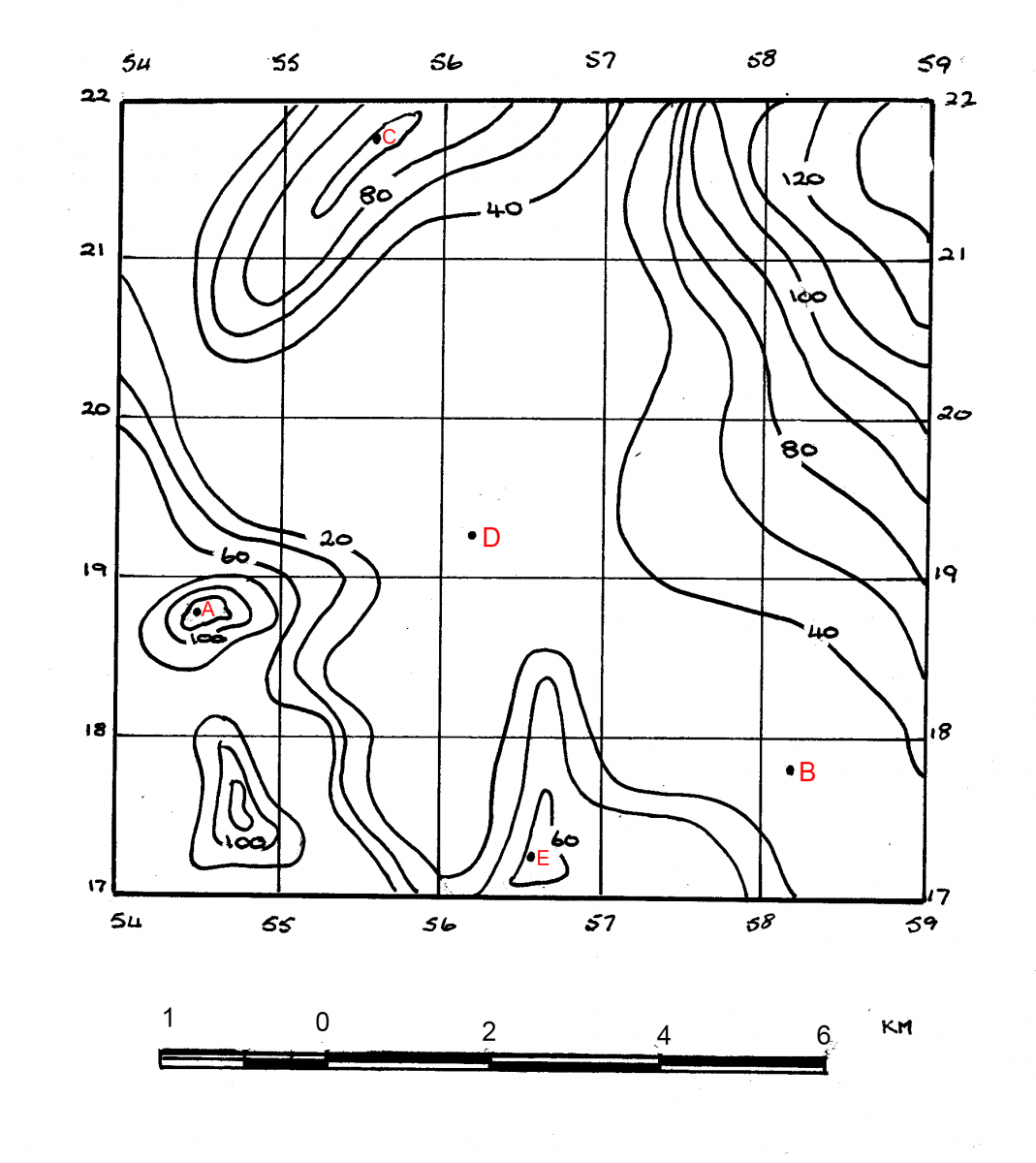

Refer to the contour map below: The grid reference for point B is-
- A.
GR 583178
- B.
GR 178583
- C.
GR 178582
- D.
GR 582178
Correct Answer
D. GR 582178Explanation
The grid reference for point B is GR 582178 because the first two digits represent the easting, which is the horizontal coordinate, and the last three digits represent the northing, which is the vertical coordinate. In this case, the easting is 58 and the northing is 217, so the correct grid reference is GR 582178.Rate this question:
-
- 8.
Refer to the contour map below: The direct linear distance between point B and point D is closest to-
- A.
5 kilometres
- B.
6 kilometres
- C.
3.2 kilometres
- D.
4.5 kilometres
Correct Answer
A. 5 kilometresExplanation
Based on the contour map, the distance between point B and point D can be estimated by measuring the straight line distance between the two points. By visually analyzing the map, it can be observed that the closest estimate is 5 kilometres.Rate this question:
-
- 9.
Refer to the contour map below: Which point has the highest altitude?
- A.
Point C
- B.
Point A
- C.
Point E
- D.
Point B
Correct Answer
B. Point AExplanation
Based on the contour lines on the map, point A is positioned at the highest altitude. This can be inferred because the contour lines are closer together around point A, indicating a steeper slope, which is typically associated with higher altitudes. The other points, B, C, and E, are located in areas with contour lines that are further apart, suggesting lower altitudes.Rate this question:
-
- 10.
Refer to the contour map below: What is the contour interval of the map?
- A.
20 metres
- B.
10 metres
- C.
40 metres
- D.
20-40 metres
Correct Answer
A. 20 metresExplanation
The contour interval of a map refers to the vertical distance between adjacent contour lines. In this case, the given answer is 20 metres. This means that each contour line on the map represents a change in elevation of 20 metres.Rate this question:
-
- 11.
Refer to the contour map below: The area for the grid square in which point B falls is:
- A.
5 kilometres square
- B.
2 kilometres square
- C.
4 kilometres square
- D.
8 kilometres square
Correct Answer
C. 4 kilometres squareExplanation
Based on the contour map, the area for the grid square in which point B falls can be determined by looking at the grid lines and counting the number of grid squares that cover the area. From the given options, the only option that matches the number of grid squares is 4 kilometres square. Therefore, the correct answer is 4 kilometres square.Rate this question:
-
- 12.
Refer to the contour map below: The area reference for point D is
- A.
5620
- B.
1956
- C.
2056
- D.
5619
- E.
562193
Correct Answer
D. 5619Explanation
The correct answer is 5619. This is because the contour lines on the map indicate the elevation of the land. By examining the contour lines around point D, it can be determined that the area reference for point D is 5619, as this is the closest contour line to the point.Rate this question:
-
- 13.
If the distance from Mt Blair to Mt Monger was 8.2km, how long would the journey take if travelling at an average speed of 80 km/hr?
- A.
9.7 minutes
- B.
585 minutes
- C.
6.15 minutes
- D.
0.1025 minutes
Correct Answer
C. 6.15 minutesExplanation
The correct answer is 6.15 minutes. To calculate the time it takes to travel a certain distance, we can use the formula: Time = Distance / Speed. In this case, the distance is 8.2 km and the speed is 80 km/hr. Plugging these values into the formula, we get Time = 8.2 km / 80 km/hr = 0.1025 hours. To convert this to minutes, we multiply by 60, giving us 0.1025 hours * 60 minutes/hr = 6.15 minutes. Therefore, the journey would take 6.15 minutes.Rate this question:
-
- 14.
How many cardinal points are there on a compass?
- A.
16
- B.
4
- C.
8
- D.
12
Correct Answer
B. 4Explanation
A compass typically has four cardinal points, which are North, South, East, and West. These points represent the four main directions on the compass and are used for navigation purposes.Rate this question:
-
