1.
Identify the circled connector.
Correct Answer
D. 1/4" (Quarter-Inch) aka 6.35mm Audio Cable
Explanation
The circled connector in the image is a 1/4" (Quarter-Inch) aka 6.35mm Audio Cable connector.
2.
Identify this connector.
Correct Answer

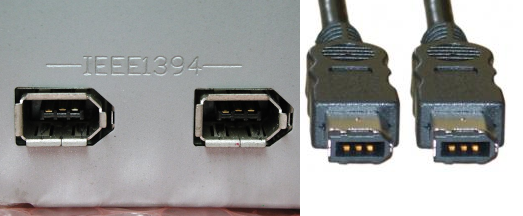

A. 6 to 6 Pin Firewire
Explanation
This connector is identified as a 6 to 6 Pin Firewire connector.
3.
Identify this connector.
Correct Answer

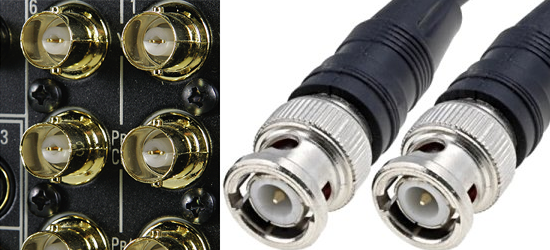

C. BNC Connector
Explanation
The correct answer is BNC Connector. The BNC connector is a type of coaxial connector commonly used in video and RF applications. It is characterized by its bayonet-style locking mechanism, which provides a secure and reliable connection. The BNC connector is often used for connecting video equipment, such as cameras and monitors, as well as for networking and telecommunications applications. It is known for its high bandwidth capabilities and resistance to interference.
4.
Identify this connector.
Correct Answer

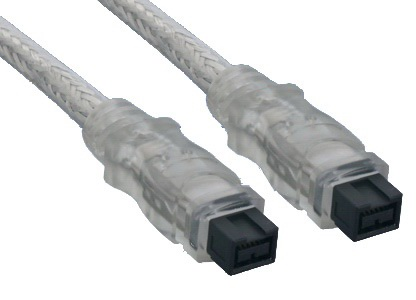

B. 9 to 9 Pin Firewire
5.
Identify this connector.
Correct Answer

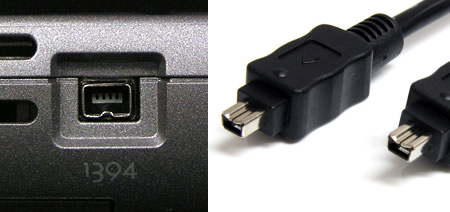

C. 4 to 4 Pin Firewire
Explanation
The connector shown in the image is a 4 to 4 Pin Firewire connector. This type of connector is commonly used to transfer data between devices such as computers and external hard drives or cameras. It has a distinctive shape with a rectangular plug and four pins on each side. The 4 to 4 Pin Firewire connector is different from Mini USB and Micro USB connectors, which have a different shape and number of pins.
6.
Identify this connector.
Correct Answer

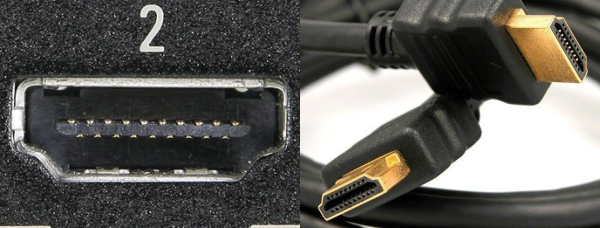

C. HDMI Connector
Explanation
The correct answer is HDMI Connector. HDMI stands for High-Definition Multimedia Interface. It is a digital audio/video interface used for transmitting uncompressed video and audio data from a source device to a display device, such as a television or monitor. The HDMI connector is rectangular in shape with 19 pins, and it is commonly used for connecting devices like DVD players, gaming consoles, and laptops to TVs or monitors for high-quality audio and video transmission.
7.

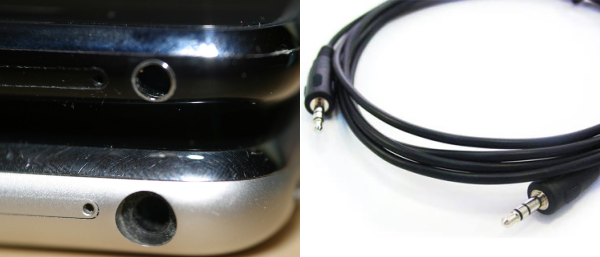

Identify this connector.
Correct Answer

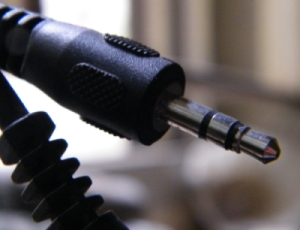

A. 1/8" (Eighth-Inch) aka Mini aka 3.5mm Audio Cable
Explanation
This connector is commonly known as a 1/8" (Eighth-Inch) connector, but it is also referred to as a Mini connector or a 3.5mm connector. It is commonly used for audio connections, such as headphones and auxiliary cables.
8.
Identify this connector.
Correct Answer

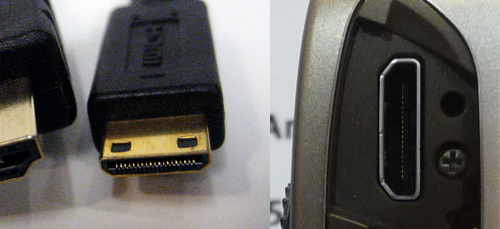

C. Mini HDMI Connector
Explanation
A Mini HDMI connector is a type of connector used to transmit audio and video signals from a device to a display. It is smaller in size compared to a regular HDMI connector, making it suitable for smaller devices such as smartphones, tablets, and digital cameras. The Mini HDMI connector has a compact design with a smaller form factor, allowing for easy connectivity and portability. It is commonly used to connect devices to TVs, monitors, and projectors to display high-definition content.
9.
Identify this connector.
Correct Answer

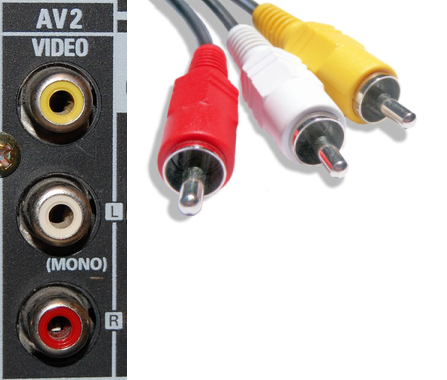

D. RCA / pHono Connector
Explanation
The correct answer is RCA / Phono Connector. The RCA / Phono Connector is a type of electrical connector commonly used to transmit audio and video signals. It consists of a circular metal plug with a center pin and a surrounding metal ring, which provide a secure and reliable connection. The RCA / Phono Connector is widely used in consumer electronics, such as TVs, DVD players, and audio systems, to connect devices and transmit analog audio and video signals.
10.
Identify this connector.
Correct Answer

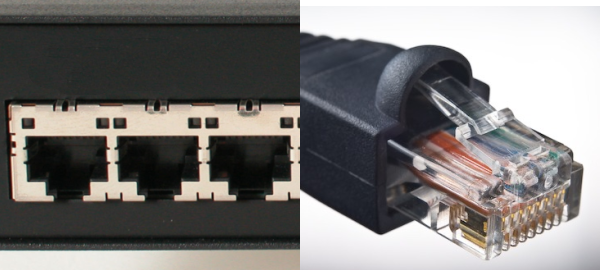

C. Ethernet / RJ45 Connector
Explanation
The correct answer is Ethernet/RJ45 Connector. This type of connector is commonly used in computer networking to connect devices such as computers, routers, and switches. It has eight pins and is designed to provide a secure and reliable connection for transmitting data over Ethernet cables.
11.
Identify this connector.
Correct Answer

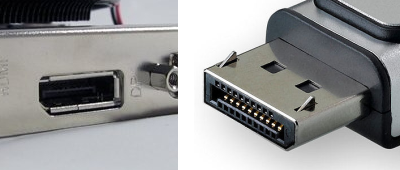

D. DisplayPort Connector
Explanation
The given connector is a DisplayPort connector. DisplayPort is a digital display interface used to connect video sources to displays, such as monitors and TVs. It is commonly used in computers and laptops to transmit high-quality video and audio signals. The connector has a distinctive rectangular shape with a smaller notch on one side, which helps to ensure proper alignment during connection.
12.
Identify this connector.
Correct Answer

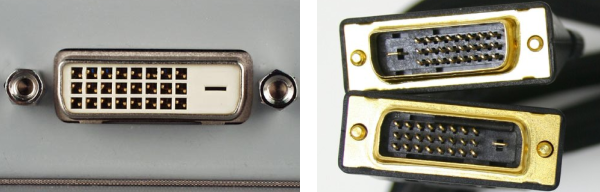

B. DVI Connector
Explanation
The correct answer is DVI Connector. DVI (Digital Visual Interface) is a video display interface commonly used to connect a video source, such as a computer or DVD player, to a display device, such as a monitor or TV. It provides a high-quality digital signal transmission, allowing for better image quality compared to analog connectors like VGA. The DVI connector has rectangular pins arranged in a specific pattern, making it easy to identify.
13.
Identify this connector.
Correct Answer

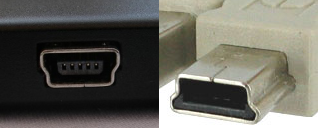

A. Mini USB Connector
Explanation
The given image shows a Mini USB Connector. This type of connector is commonly used for connecting various devices such as smartphones, cameras, and portable hard drives to a computer or charger. It has a compact size and a rectangular shape with a small pin in the center. The Mini USB Connector is known for its versatility and durability, making it a popular choice for many electronic devices.
14.

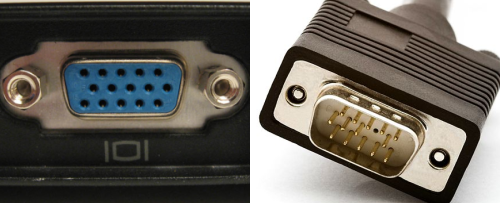

Identify this connector.
Correct Answer
B. (S)VGA Connector
Explanation
The correct answer is (S)VGA Connector. VGA stands for Video Graphics Array and is a common type of connector used to connect a computer or laptop to a monitor or projector. It is characterized by its blue color and has 15 pins arranged in three rows. The (S) in front of VGA suggests that it could also refer to the Super Video Graphics Array connector, which is an enhanced version of VGA that supports higher resolutions and refresh rates.
15.
Identify this connector.
Correct Answer

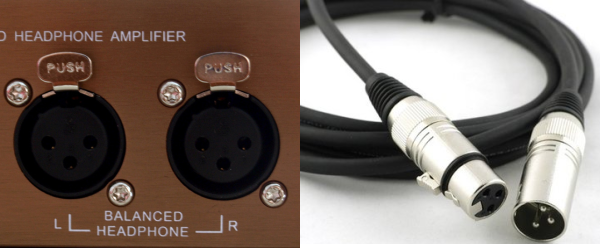

C. XLR Connector
Explanation
The correct answer is XLR Connector. XLR connectors are commonly used in professional audio and video equipment. They are known for their three-pin design, which provides a balanced connection that helps reduce noise and interference. XLR connectors are often used for microphones, speakers, and other audio devices in live sound, recording studios, and broadcast settings.
16.
Identify this connector.
Correct Answer

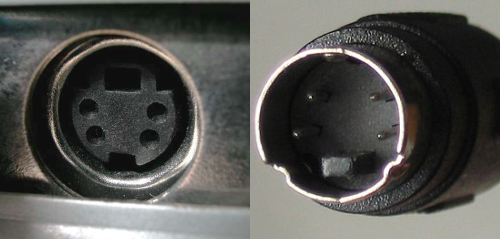

B. S - Video Connector
Explanation
The correct answer is S-Video Connector. This connector is commonly used to transmit video signals from a device to a display, such as a TV or computer monitor. It has a round shape with multiple pins and is designed to provide a higher quality video signal compared to other connectors like RCA or composite video. The S-Video connector separates the video signal into two separate components: luminance (brightness) and chrominance (color), resulting in a sharper and more detailed image.
17.

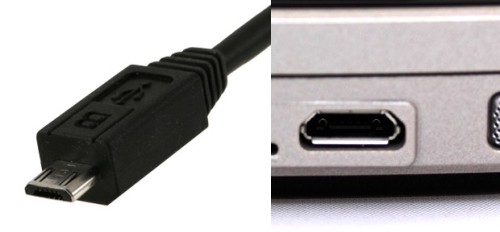

Identify this connector.
Correct Answer
C. Micro USB Connector
Explanation
The correct answer is Micro USB Connector. This connector is commonly used for charging and data transfer in many devices such as smartphones, tablets, and cameras. It has a small size and a rectangular shape with a single port. It is widely used due to its versatility and compatibility with various devices.
18.
Identify this connector.
Correct Answer

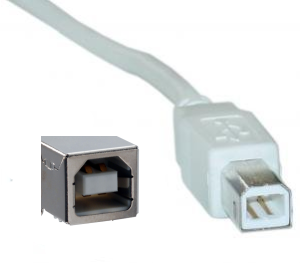

D. USB Type B Connector
Explanation
The given image shows a USB Type B connector. This type of connector is commonly used for connecting peripherals such as printers, scanners, and external hard drives to a computer. It has a square shape with beveled corners and a flat top, and it has a total of four pins. The USB Type B connector is larger and less common than the more widely used USB Type A connector, which is the standard connector found on most computers and devices.
19.

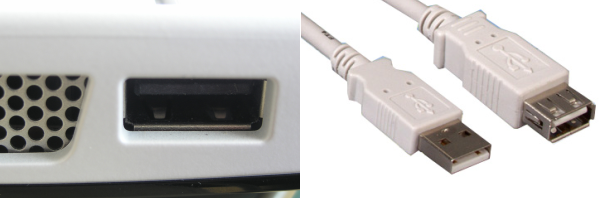

Identify this connector.
Correct Answer
A. USB Type A Connector
Explanation
The given image shows a USB Type A connector. This type of connector is commonly used to connect devices such as keyboards, mice, and external hard drives to a computer. It has a rectangular shape with a flat and wide design. The USB Type A connector is known for its versatility and is widely used in various electronic devices.
20.
Identify this connector.
Correct Answer

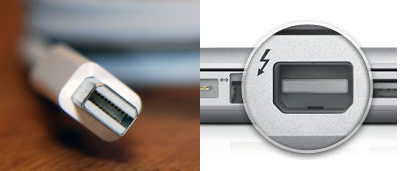

C. Apple Thunderbolt / Mini DisplayPort Connector
Explanation
The correct answer is Apple Thunderbolt / Mini DisplayPort Connector. This connector is commonly used for connecting Apple devices such as MacBooks to external displays or projectors. It supports high-definition video and audio transmission, making it ideal for multimedia purposes. The Thunderbolt technology allows for fast data transfer and daisy-chaining multiple devices. The Mini DisplayPort is a smaller version of the Thunderbolt connector, but they are compatible with each other.
21.
Is this item Mono or Stereo?
Correct Answer
B. Stereo
Explanation
The given answer is "Stereo" because the question is asking whether the item is mono or stereo. Since the options provided are "Mono" and "Stereo", the correct answer is "Stereo".
22.
If someone is having OAM issues, where should you refer them?
Correct Answer
B. Helpdesk / Help Desk
Explanation
If someone is experiencing OAM (Operations, Administration, and Maintenance) issues, they should be referred to the Helpdesk or Help Desk. The Helpdesk is typically responsible for providing technical support and troubleshooting assistance to users. They are trained to handle various IT-related issues and can assist the person in resolving their OAM problems.
23.
If you’re displaying a widescreen movie (16:9) on a system that is set up to display 4:3, what will the image look like?
Correct Answer
D. The image will be stretched vertically
Explanation
When displaying a widescreen movie with a 16:9 aspect ratio on a system that is set up to display in 4:3 aspect ratio, the image will be stretched vertically. This means that the height of the image will be increased to fit the 4:3 screen, resulting in a distorted and elongated appearance. The width of the image will remain the same, causing the stretching effect.
24.
What will the image look like if the refresh rate is too high?
Correct Answer
A. Image will appear misaligned, distorted, or blank out
Explanation
If the refresh rate is too high, the image on the screen may not be able to keep up with the rapid changes, leading to misalignment, distortion, or even the image completely disappearing (blanking out). This occurs because the screen is refreshing at a faster rate than it can display the images, causing visual issues.
25.
What will it sound like if the audio system is overdriven?
Correct Answer
C. Some audio sources will sound distorted
Explanation
When an audio system is overdriven, it means that the volume or power level is set too high, causing the audio to exceed its maximum capacity. This can result in distortion, where the sound becomes fuzzy, clipped, or muffled. Some audio sources, such as speakers or instruments, may be more prone to distortion when overdriven compared to others. Therefore, the correct answer is that some audio sources will sound distorted.
26.
What does it mean for the audio system to be overdriven?
Correct Answer
D. Too much pre-amplification of the audio signal.
Explanation
When the audio system is overdriven, it means that there is too much pre-amplification of the audio signal. This can result in distortion and clipping of the audio, causing it to sound harsh and unpleasant. It is important to properly balance the amplification levels to avoid overdriving the audio system.
27.
On a Klasstech podium, can a presenter use power point presenter mode with the native PC?
Correct Answer
B. False
Explanation
On a Klasstech podium, a presenter cannot use power point presenter mode with the native PC.
28.
What basic troubleshooting steps would you pursue if the activity on an instructors laptop is visible, but the connected projector is displaying a blank image?
Correct Answer
C. Check for power, proper connectivity, source selection and proper display settings on laptop.
Explanation
The correct answer is to check for power, proper connectivity, source selection, and proper display settings on the laptop. This is because if the activity on the instructor's laptop is visible but the connected projector is displaying a blank image, it suggests that there may be an issue with the connection between the laptop and the projector. Checking for power ensures that the devices are properly powered on. Checking for proper connectivity ensures that the cables are securely connected. Source selection ensures that the correct input source is selected on the projector. Proper display settings on the laptop ensure that the laptop is configured to output the display to the projector.
29.
Which video signal type includes unique red, green and blue video connectors?
Correct Answer
A. Component
Explanation
Component video signal includes unique red, green, and blue video connectors. This type of video signal separates the video information into three separate channels, allowing for higher quality and more accurate color reproduction compared to composite or S-video signals. The red, green, and blue connectors carry the individual color information, resulting in a sharper and more vibrant image on the display device.
30.
Of component, composite and s-video, which delivers the highest resolution?
Correct Answer
B. Component
Explanation
Component delivers the highest resolution among S-Video, component, and composite. Component video separates the video signal into three components: red, green, and blue. This allows for higher quality and sharper images compared to composite video, which combines all the video signals into one. S-Video, on the other hand, separates the video signal into two components: luminance (brightness) and chrominance (color), resulting in a lower resolution compared to component video.
