Washer Quiz - 20 Questions

The approximate ohms of an oven probe at room temperature is 1100 ohms. This means that the resistance of the oven probe is around 1100 ohms when it is at room temperature.

The statement is false because on a typical front load washer, the shipping bolts are meant to be removed before the customer starts using it for the first time. These bolts are used to secure the drum during transportation and prevent it from moving around. If the shipping bolts are not removed, it can cause damage to the washer and affect its performance.

A thermistor is a sensor that is used to measure temperature. It works by changing its resistance in response to changes in temperature. As the temperature increases, the resistance of the thermistor decreases, and vice versa. This change in resistance can then be measured and used to determine the temperature. Therefore, the correct answer is "a sensor for temperature that changes based on resistance."

The main purpose of the rps sensor or hall sensor is to detect and sense the movement of the inner basket. This sensor is responsible for providing feedback on the rotational speed and position of the inner basket, allowing the system to control and adjust the washing cycle accordingly. By sensing the movement of the inner basket, the sensor helps ensure proper functioning and efficiency of the washing machine.

The correct answer is 60 minutes or less. This means that the average time for a dryer to dry a full load of 6 bath towels is expected to be 60 minutes or less. It could take less than 60 minutes or it could take exactly 60 minutes, but it should not take more than 60 minutes.

The most likely issue in this scenario is a siphoning issue. When a washer is filling and draining at the same time, it suggests that there is a problem with the water drainage system. A siphoning issue occurs when the water is being pulled out of the washer through the drain hose due to improper installation or a faulty drain pipe. This can prevent the washer from properly filling and result in continuous draining during the wash cycle.

A 30 amp circuit requires a wire gauge that can handle the current without overheating. The correct answer is 10 because it is the appropriate wire gauge for a 30 amp circuit. A wire gauge of 8 would be too thick and unnecessary, while a gauge of 12 would be too thin and unable to safely carry the required current. Therefore, the correct wire gauge for a 30 amp circuit is 10.

To check the condition of a water valve, the best way is to apply power to the valve or check the voltage to the valve. This is because applying power or checking the voltage will help determine if the valve is receiving the necessary electrical input to function properly. By doing so, one can identify if there is any issue with the electrical connection or if the valve is faulty and needs to be replaced.

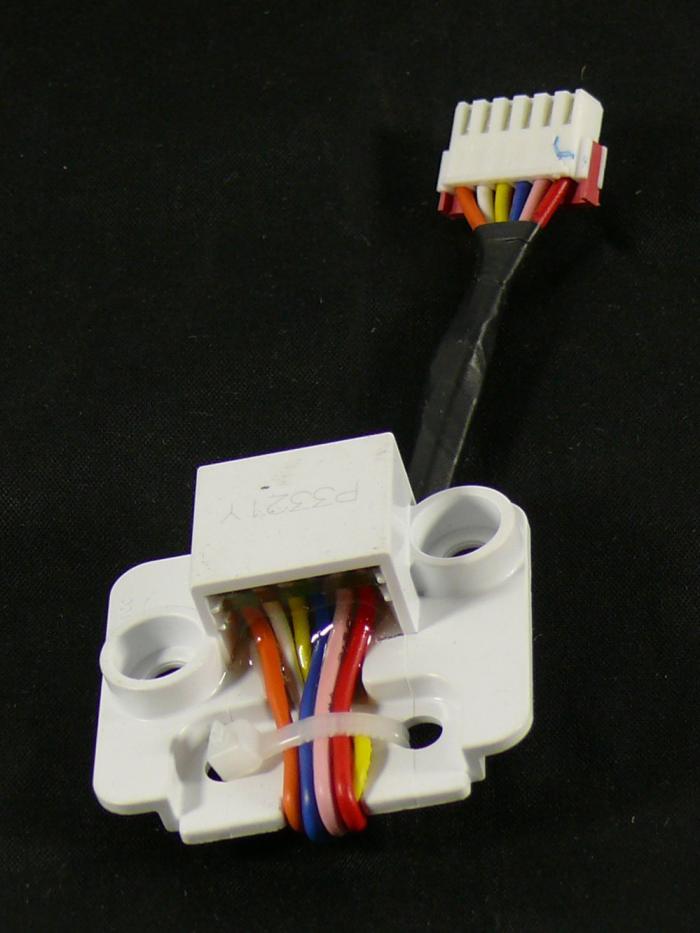

The MEM sensor on a Samsung washer is used to determine if the unit is level. This sensor helps to ensure that the washer is properly balanced, which is important for efficient and effective washing. If the washer is not level, it can cause vibrations and noise during operation. By detecting the level of the unit, the MEM sensor allows the washer to adjust its settings or alert the user to make necessary adjustments for optimal performance.

The purpose of the bleed resistor in a microwave capacitor is to slowly discharge the capacitor. When the microwave is turned off, the capacitor still holds a charge, and if it is not discharged properly, it can be dangerous. The bleed resistor provides a path for the charge to slowly dissipate, ensuring that the capacitor is safely discharged before any maintenance or repair work is done.

The correct answer is the inner basket and back half of the outer tub that includes the bearing. This is because the defective rear bearings are located within the back half of the outer tub. To replace the bearings, both the inner basket and the back half of the outer tub need to be replaced as a unit.

The maximum continuous current draw on a 50 amp circuit is 40 amps. This is because it is generally recommended to only use 80% of the circuit's capacity to prevent overheating and potential damage. 80% of 50 amps is 40 amps, so that is the maximum safe continuous current draw.

The correct way to check a 3-phase motor after verifying that the bearings spin freely is to isolate the motor and check for resistance between any two pair of winding terminals. The resistance reading between any two pairs of winding terminals should be the same. This indicates that the windings are balanced and there are no short circuits or open circuits in the motor. If the resistance readings are different, it suggests a fault in the motor windings.

The correct answer is 350-375 degrees Fahrenheit. This temperature range is ideal for frying because it allows the food to cook evenly and quickly without becoming overly greasy or burnt. Frying at a lower temperature may result in the food absorbing too much oil, while frying at a higher temperature may cause the food to cook too quickly on the outside while remaining undercooked on the inside. Therefore, maintaining a temperature between 350-375 degrees Fahrenheit ensures that the food is cooked to perfection.

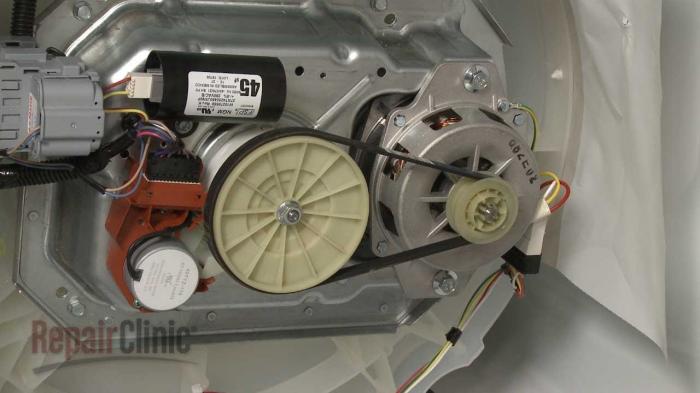

The function of "senses and locks the lid" does not belong in terms of the actuator in a belt-driven Whirlpool Cabrio washer because it is not directly related to the movement or operation of the tub. The other options, such as "senses movement of the tub" and "actuate between spin and agitation," are directly involved in the functioning of the actuator and the overall operation of the washer.

A start capacitor in a washer typically has a capacitance of 88 microfarads (mfd) or higher. This capacitor is responsible for providing an initial boost of power to start the motor of the washer. Capacitors with higher capacitance values are able to provide a stronger boost, which is why 88 and up is the correct answer.

A shunt circuit is typically found in a gas dryer. A shunt circuit is a type of electrical circuit that diverts or bypasses a portion of the current flow, usually for the purpose of measuring or regulating the current. Gas dryers often have electrical components, such as control boards and sensors, that require the use of shunt circuits to regulate the flow of electricity. On the other hand, a gas range, electric range, or front load washer do not typically require shunt circuits for their operation.

When looking for debris on a washer pump, all of the options mentioned are correct. Debris can be found in the drain hose attached to the pump, the outlet of the pump, as well as the inlet of the pump. Therefore, all of these areas should be inspected for any potential debris that may be causing issues with the washer pump.

After verifying the controls are set correctly, the first thing you should check on a front load washer that doesn't spin is the drain pump. The drain pump is responsible for removing water from the washer during the spin cycle. If the drain pump is malfunctioning or clogged, it can prevent the washer from spinning. Therefore, checking the drain pump is crucial in troubleshooting the issue.
