1.
What does the diamond symbol on a flowchart denote?
Correct Answer
D. A decision step
Explanation
The diamond symbol on a flowchart denotes a decision step. In a flowchart, a decision step is used to represent a point where a choice needs to be made or a condition needs to be evaluated. It indicates that the flow of the process can take different paths based on the outcome of the decision. This symbol helps to visually represent decision-making points in a flowchart, making it easier to understand the logic and sequence of steps in a process.
2.
Which of the following describe what “CTQ’s” should be?
Correct Answer
A. Measurable
Explanation
CTQs, or Critical to Quality, are the key characteristics or requirements that are essential for a product or process to meet customer expectations. These characteristics should be measurable, meaning they can be quantified or observed in a concrete way. This allows for objective evaluation and comparison of different options. By being measurable, CTQs provide a clear framework for setting targets, monitoring performance, and making data-driven decisions to improve quality.
3.
Which of the following is considered an element of value-added work?
Correct Answer
A. Doing the task or action right the first time
Explanation
Doing the task or action right the first time is considered an element of value-added work because it ensures that the work is done correctly and does not require any rework or corrections. This saves time, resources, and effort, ultimately adding value to the final product or service. By completing the task accurately from the beginning, it eliminates the need for additional work, increases efficiency, and enhances customer satisfaction.
4.

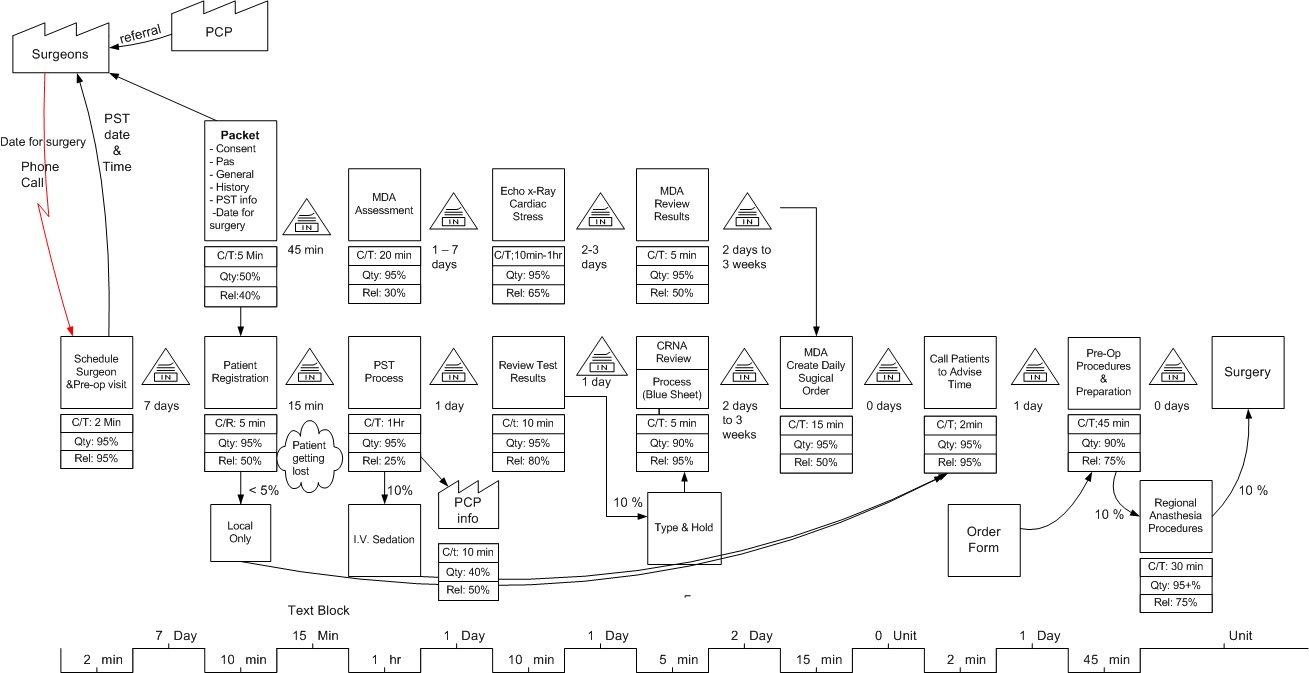

A Value Stream Map is a tool to: (More than 1 answer)
Correct Answer(s)
B. Assist you in identifying and eliminating all forms of waste
E. Identify organizational opportunities
Explanation
A Value Stream Map is a visual representation of the entire process flow, from start to finish, of a product or service. It helps in identifying and eliminating all forms of waste by highlighting areas of inefficiency and non-value-added activities. By mapping out the value stream, organizations can identify opportunities for improvement and implement strategies to eliminate waste and improve overall efficiency. Additionally, the map can also help in identifying organizational opportunities by providing a holistic view of the entire value stream and identifying areas for improvement and optimization.
5.
In its purest form, when items are processed and moved directly from one process to the next one piece at a time, it is known as:
Correct Answer
B. Continuous flow
Explanation
Continuous flow refers to a production method where items are processed and moved directly from one process to the next one piece at a time. This approach eliminates waiting time and minimizes inventory, allowing for a smooth and efficient production process. It is often used in lean manufacturing to optimize productivity and reduce waste.
6.
A lean organization strives to create:
Correct Answer
C. A population of problem solvers
Explanation
A lean organization strives to create a population of problem solvers. This means that the organization encourages and empowers all its employees to identify and solve problems, rather than relying on a few specialists or managers to handle them. By fostering a culture of problem-solving, the organization can continuously improve its processes and eliminate waste, leading to increased efficiency and productivity. This approach also promotes employee engagement and ownership, as everyone is actively involved in finding solutions and contributing to the organization's success.
7.
Which one of the following statements is true about root causes?
Correct Answer
B. A root cause, when removed, will eliminate the problem
Explanation
When a root cause is identified and removed, it will eliminate the problem because the root cause is the underlying reason or source of the problem. By addressing and resolving the root cause, the problem can be effectively resolved and prevented from recurring. However, it is important to note that not all problems have a single root cause and not all root causes can be traced back to an individual.
8.
The word "problem" refers to which of the items below?
Correct Answer
E. All of the above
Explanation
The word "problem" refers to all of the items listed: symptom, concern, issue, and business pain. This means that any of these terms can be used interchangeably to describe a problem.
9.
In what region of a SIPOC does the problem have to reside for your SIPOC to be useful in the process you are evaluating?
Correct Answer
D. Inputs, Process
Explanation
The SIPOC (Suppliers, Inputs, Process, Outputs, Customers) is a tool used to define and understand a process. In order for the SIPOC to be useful in evaluating a process, the problem needs to reside in the Inputs and Process regions. The Inputs region includes the materials, information, and resources that are necessary for the process to be carried out effectively. The Process region refers to the steps and activities involved in executing the process. By identifying and addressing problems in these regions, the SIPOC can help improve the overall performance and efficiency of the process.
10.
Capacity is defined as
Correct Answer
B. The maximum amount of service a process can deliver over a defined period
Explanation
The correct answer is "The maximum amount of service a process can deliver over a defined period". Capacity refers to the maximum output or service that a process or system can deliver within a specific time frame. It represents the upper limit of what can be achieved and is often measured in terms of units produced, customers served, or tasks completed. It is essential for organizations to understand and optimize their capacity to ensure efficient and effective operations.
11.
Which one of the following is NOT considered a Key Process Input Variable (KPIV’s)?
Correct Answer
D. Financial performance
Explanation
Financial performance is not considered a Key Process Input Variable (KPIV) because it is typically a Key Performance Indicator (KPI) that measures the overall financial health and success of a business or organization. KPIVs, on the other hand, are specific variables or factors that directly impact the outcome or quality of a process. The other options listed in the question, such as skill level of staff, availability/quality of materials, correctness of document, diagnostic results, and accuracy/completeness of data entry, are all examples of KPIVs as they directly influence the effectiveness and efficiency of a process.
12.
Data must have the following attributes
Correct Answer
E. All of the above
Explanation
The correct answer is "All of the above" because for data to be useful and meaningful, it must possess all of the mentioned attributes. Data should be contextual, meaning it should be relevant and applicable to the specific situation or problem being addressed. It should also be sufficient, providing enough information to support accurate analysis and decision-making. Additionally, data should be representative, meaning it should accurately represent the population or phenomenon being studied. Finally, data should be reliable, meaning it should be accurate, consistent, and free from errors or biases.
13.
What type of data is: Time in minutes to complete Triage?
Correct Answer
C. Continuous
Explanation
Continuous data refers to data that can take on any value within a certain range. In this case, the time in minutes to complete Triage can vary continuously, as it can take on any value within a certain range (e.g. 1.5 minutes, 2.3 minutes, etc.). This is in contrast to discrete data, which can only take on specific values (e.g. number of patients seen in a day). Therefore, the correct answer is continuous.
14.
Which is NOT true for a Charter
Correct Answer
D. Clearly states the root cause
Explanation
A charter is a document that outlines the purpose, objectives, and scope of a project. It clarifies what is expected of the project team, manages the scope of the project, and keeps the team aligned with organizational priorities. However, stating the root cause is not a characteristic of a charter. The root cause analysis is a separate process that is performed to identify the underlying cause of a problem or issue. Therefore, the statement "Clearly states the root cause" is not true for a charter.
15.
What is a SIPOC primarily used for?
Correct Answer
C. Help you understand your work as a process
Explanation
A SIPOC (Suppliers, Inputs, Process, Outputs, Customers) is primarily used to help you understand your work as a process. It provides a high-level overview of a process by identifying the suppliers, inputs, process steps, outputs, and customers involved. By mapping out these elements, a SIPOC helps to visualize the flow of work and understand how each component contributes to the overall process. This understanding is crucial for identifying areas of improvement, waste, and inefficiencies in the process. It also helps in creating a detailed flowchart of the process.
16.
Special cause variation is always present to some degree in any process.
Correct Answer
B. False
Explanation
Special cause variation refers to variations in a process that are caused by specific factors that are not part of the normal process. These factors can be identified and eliminated to improve the process. However, special cause variation is not always present in any process. In fact, the goal of process improvement is to reduce special cause variation as much as possible, leaving only common cause variation, which is inherent to the process and cannot be eliminated. Therefore, the correct answer is False.
17.
Driver diagrams help you select which processes influence a specific area
Correct Answer
A. True
Explanation
Driver diagrams are a visual tool used to identify and understand the key drivers or processes that influence a specific area or outcome. They help to map out the cause-and-effect relationships between different factors and determine which processes have the most significant impact. By using driver diagrams, organizations can prioritize and focus their efforts on the most influential processes to achieve their desired outcomes. Therefore, the given statement that driver diagrams help in selecting which processes influence a specific area is true.
18.
What are the 5 Steps of Six Sigma?
__________
__________
__________
__________
__________
Correct Answer
D M A I C, DMAIC
Explanation
The correct answer is DMAIC. DMAIC stands for Define, Measure, Analyze, Improve, and Control. These are the five steps of the Six Sigma methodology used for process improvement. In the Define phase, the problem or opportunity is identified and goals are set. In the Measure phase, data is collected to understand the current process performance. In the Analyze phase, the data is analyzed to identify the root causes of the problem. In the Improve phase, solutions are implemented to address the root causes. Finally, in the Control phase, the improved process is monitored and sustained to ensure long-term success.
