Industrial Hydraulics And Pneumatics Quiz!

Approved & Edited by ProProfs Editorial Team

The editorial team at ProProfs Quizzes consists of a select group of subject experts, trivia writers, and quiz masters who have authored over 10,000 quizzes taken by more than 100 million users. This team includes our in-house seasoned quiz moderators and subject matter experts. Our editorial experts, spread across the world, are rigorously trained using our comprehensive guidelines to ensure that you receive the highest quality quizzes.

Learn about Our Editorial Process

| By Anil Karanjkar

Anil Karanjkar

Community Contributor

Quizzes Created: 1 | Total Attempts: 1,163

Questions: 130 | Attempts: 1,163 | Updated: Mar 22, 2023

Questions

Settings

Feedback

During the Quiz End of Quiz

Play as

Quiz Flashcard

Create your own Quiz

Industrial Hydraulics And Pneumatics Quiz! - Quiz

Questions and Answers

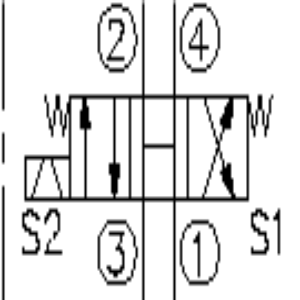

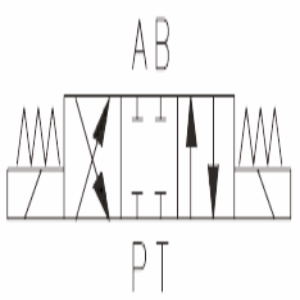

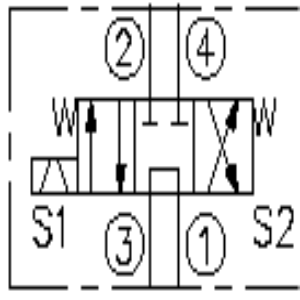

1.

Upload your response
2.

Which of the following systems generate more energy when used in industrial applications?
- A.

  Hydraulic systems
- B.

  Pneumatic systems
- C.

  Both systems generate same energy
- D.

  cannot say
Correct Answer
A. Hydraulic systems

Explanation
Hydraulic systems generate more energy when used in industrial applications compared to pneumatic systems. This is because hydraulic systems use incompressible fluids to transmit power, which allows for higher force and torque output. In contrast, pneumatic systems use compressed air, which has lower energy density and cannot generate as much power as hydraulic systems. Therefore, hydraulic systems are more suitable for heavy-duty industrial applications that require higher energy output.

Rate this question:

1
0
3.

Which type of compressor requires a reservoir for compressed air and why?
- A.

  Rotary compressor to avoid pulsating effect
- B.

  Reciprocating compressor to avoid pulsating effect
- C.

  Both rotary and reciprocating compressors to avoid pulsating effect
- D.

  None of the above
Correct Answer
B. Reciprocating compressor to avoid pulsating effect

Explanation
A reciprocating compressor requires a reservoir for compressed air to avoid pulsating effect. This is because a reciprocating compressor operates by using a piston to compress air in a cylinder, which creates a pulsating flow of compressed air. By having a reservoir, the pulsations can be absorbed and smoothed out, resulting in a more consistent and continuous flow of compressed air.

Rate this question:

1
0
4.

Which of the following factors is considered while selecting a compressor?
- A.

  Type of oil filter required
- B.

  Volumetric efficiency
- C.

  Viscosity of the liquids used
- D.

  All the above
Correct Answer
B. Volumetric efficiency

Explanation
Volumetric efficiency is considered while selecting a compressor because it measures the actual amount of air that is delivered by the compressor compared to the theoretical amount of air that it should deliver. This factor is important because it determines the efficiency and performance of the compressor. By considering the volumetric efficiency, one can ensure that the compressor is capable of delivering the required amount of air for the specific application.

Rate this question:
5.

Where is an inter-cooler connected in a two stage compressor?
- A.

  Inter-cooler is connected after the two stage compressor
- B.

  Inter-cooler is connected between the two stages of the compressor
- C.

  Inter-cooler is connected before the two stage compressor
- D.

  None of the above
Correct Answer
B. Inter-cooler is connected between the two stages of the compressor

Explanation
In a two-stage compressor, an inter-cooler is connected between the two stages of the compressor. This is done to cool down the compressed air between the stages, as the compression process generates heat. By cooling the air, the inter-cooler helps to increase the efficiency and performance of the compressor. It also prevents excessive heat buildup, which can cause damage to the compressor components. Therefore, connecting the inter-cooler between the two stages is the correct placement to optimize the cooling process and ensure proper functioning of the compressor.

Rate this question:
6.

Which valve is also known as memory valve?
- A.

  Single pilot signal valve
- B.

  Double pilot signal valve
- C.

  Roller lever valve
- D.

  Logic valve
Correct Answer
B. Double pilot signal valve

Explanation
The double pilot signal valve is also known as the memory valve because it is designed to hold its last position even when the control signal is removed. This allows the valve to "remember" its position and maintain it until a new control signal is received. This feature is useful in applications where maintaining a specific position is important, such as in hydraulic systems or pneumatic control systems.

Rate this question:
7.

Which of the following is a gas charged accumulator?
- A.

  Bladder type
- B.

  Spring loaded accumulator
- C.

  Weighted accumulator
- D.

  All the above
Correct Answer
A. Bladder type

Explanation
A gas charged accumulator is a device used to store energy in the form of pressurized gas. It consists of a bladder or diaphragm that separates the gas and the hydraulic fluid. When the hydraulic system is pressurized, the gas is compressed, and when the system pressure drops, the stored energy is released to provide additional power. The bladder type accumulator is a specific type of gas charged accumulator that uses a flexible bladder to separate the gas and fluid. It is commonly used in hydraulic systems to absorb shocks, dampen pressure fluctuations, and provide emergency power.

Rate this question:
8.

Which of the following gas is used in gas charged accumulator?
- A.

  Oxygen
- B.

  Nitrogen
- C.

  Carbon dioxide
- D.

  All the above
Correct Answer
B. Nitrogen

Explanation
Gas charged accumulators are commonly used in hydraulic systems to store energy and provide a source of pressure. Nitrogen gas is typically used in gas charged accumulators because it is non-reactive, non-flammable, and readily available. Nitrogen gas also has a high compressibility, allowing it to store and release energy effectively. Oxygen and carbon dioxide are not commonly used in gas charged accumulators due to their reactivity and flammability. Therefore, the correct answer is nitrogen.

Rate this question:
9.

Intensifier used in pneumatic systems has output pressure
- A.

  Less than input pressure
- B.

  More than input pressure
- C.

  Same as input pressure
- D.

  None of the above
Correct Answer
B. More than input pressure

Explanation
In pneumatic systems, an intensifier is used to increase the pressure of the output fluid. This means that the output pressure is greater than the input pressure. Therefore, the correct answer is "more than input pressure."

Rate this question:
10.

Function of muffler in Pneumatic system is
- A.

  To increase the noise of compressed air
- B.

  To Reduce the noise of compressed air
- C.

  Both a and b
- D.

  None of the above
Correct Answer
B. To Reduce the noise of compressed air

Explanation
The function of a muffler in a pneumatic system is to reduce the noise produced by the compressed air. When air is compressed, it can create a loud and disruptive noise. The muffler is designed to dampen and absorb the sound waves, thereby reducing the noise level. This is important in many applications where a quieter working environment is desired, such as in factories or workshops.

Rate this question:
11.

The seals prevents even a minute amount of fluid leakage is called
- A.

  Positive seal.
- B.

  Non Positive seal
- C.

  Static seal
- D.

  Dynamic seal
Correct Answer
A. Positive seal.

Explanation
A positive seal is a type of seal that effectively prevents any fluid leakage, even in very small amounts. It ensures a tight and secure closure, leaving no room for any leakage to occur. This is in contrast to a non-positive seal, which may allow some fluid to leak. Static seals are used when there is no relative motion between the sealing surfaces, while dynamic seals are used when there is relative motion. Therefore, the correct term for a seal that prevents even a minute amount of fluid leakage is a positive seal.

Rate this question:
12.

The seals are used between the surfaces of moving hydraulic parts
- A.

  Positive seal.
- B.

  Non Positive seal
- C.

  Static seal
- D.

  Dynamic seal
Correct Answer
D. Dynamic seal

Explanation
A dynamic seal is the correct answer because it is used between the surfaces of moving hydraulic parts. Unlike static seals that are used between stationary components, dynamic seals are designed to prevent leakage and maintain the integrity of the hydraulic system when there is relative motion between the parts. These seals are typically used in applications where there is reciprocating or rotating motion, such as piston seals in hydraulic cylinders or shaft seals in rotary equipment. They are specifically designed to withstand the dynamic forces and pressures involved in these applications and provide an effective barrier against fluid leakage.

Rate this question:
13.

Schedule no. of pipe is related to
- A.

  Pressure
- B.

  Temperature
- C.

  Wall thickness
- D.

  None of the above
Correct Answer
C. Wall thickness

Explanation
The schedule number of a pipe is related to its wall thickness. The schedule number is a standard designation that indicates the thickness of the pipe's wall. It is used in various industries to ensure compatibility and proper functioning of pipes in different applications. The higher the schedule number, the thicker the wall of the pipe. Therefore, the correct answer is wall thickness.

Rate this question:

1
0
14.

Shuttle valve is known as
- A.

  AND gate valve
- B.

  NOR gate valve
- C.

  OR gate valve
- D.

  None of the above.
Correct Answer
C. OR gate valve

Explanation
A shuttle valve is a type of valve that allows fluid to flow from one input port to either of two output ports. It is commonly used in hydraulic systems to control the direction of fluid flow. In this context, it can be considered as an "OR gate valve" because it allows fluid to flow through either of the output ports if there is pressure at one of the input ports. Therefore, the correct answer is "OR gate valve".

Rate this question:
15.

When only a portion of the oil is passed through the filter is known as
- A.

  Surface filter
- B.

  Depth filter
- C.

  Full flow filter
- D.

  By pass filter
Correct Answer
D. By pass filter

Explanation
A bypass filter refers to a situation where only a portion of the oil is directed through the filter. This can occur when there is a separate pathway or channel that diverts some of the oil flow away from the main filter. The purpose of a bypass filter is often to provide additional filtration for a smaller portion of the oil, while allowing the majority of the oil to bypass the filter altogether. This can be useful in situations where the full flow of oil would be too much for a single filter to handle, or when a more specialized or finer filtration is required for a smaller portion of the oil.

Rate this question:
16.

In hydraulic systems,
- A.

  The mechanical energy is transferred to the oil and then converted into mechanical energy
- B.

  The electrical energy is transferred to the oil and then converted into mechanical energy
- C.

  The mechanical energy is transferred to the oil and converted into electrical energy
- D.

  None of the above
Correct Answer
A. The mechanical energy is transferred to the oil and then converted into mechanical energy

Explanation
In hydraulic systems, mechanical energy is transferred to the oil. This is achieved by using a pump to create pressure in the oil, which in turn allows the oil to transmit force and energy to other components of the system. The mechanical energy in the oil is then converted back into mechanical energy when it is used to drive a piston or other mechanical devices. This process allows hydraulic systems to efficiently transmit and control power in various applications.

Rate this question:
17.

Which of the following is used as a component in hydraulic power unit?
- A.

  Pressure gauge
- B.

  Filler gauge
- C.

  Valve
- D.

  Reservoir
Correct Answer
C. Valve

Explanation
A valve is used as a component in a hydraulic power unit. Valves are crucial in controlling the flow of fluid in a hydraulic system. They can regulate the pressure, direction, and flow rate of the fluid, allowing for precise control of the system. Without a valve, it would be difficult to control the operation of the hydraulic power unit effectively.

Rate this question:

0
1
18.

Rotary motion in a hydraulic power unit is achieved by using
- A.

  Hydraulic cylinder
- B.

  Pneumatic cylinder
- C.

  Both hydraulic and pneumatic cylinder
- D.

  None of the above
Correct Answer
D. None of the above
19.

Accessories used in a hydraulic power unit adjust pressure and are used to generate flow and direction of the fluid
- A.

  True
- B.

  False
Correct Answer
B. False

Explanation
The statement is false because accessories used in a hydraulic power unit do not adjust pressure or generate flow and direction of the fluid. Accessories in a hydraulic power unit are typically used for monitoring and controlling the system, such as pressure gauges, temperature sensors, control valves, and filters. These accessories help in maintaining the proper functioning and efficiency of the hydraulic system, but they do not directly adjust pressure or generate flow and direction.

Rate this question:

2
0
20.

Which of the following is used as an accessory in hydraulic power unit?
- A.

  Pumps
- B.

  Valves
- C.

  Motor
- D.

  Reservoir
Correct Answer
D. Reservoir

Explanation
A reservoir is used as an accessory in a hydraulic power unit to store and supply hydraulic fluid to the system. It acts as a storage tank for the hydraulic fluid, ensuring a continuous and reliable supply of fluid to the pumps, valves, and other components of the hydraulic system. The reservoir also helps in cooling the hydraulic fluid and removing any contaminants or air bubbles present in the system. Overall, the reservoir plays a crucial role in maintaining the proper functioning and efficiency of the hydraulic power unit.

Rate this question:
21.

Which of the following statements are true? 1. Bell housing connects motor and pump 2. Centrifugal pump is a non-positive displacement pump 3. Centrifugal pumps allow the back flow of fluid from delivery side to the suction side of the pump 4. The function of vent plug used in a reservoir is to flush out oil
- A.

  1, 2 and 4
- B.

  2, 3 and 4
- C.

  2 and 3
- D.

  All the above
Correct Answer
B. 2, 3 and 4

Explanation
Statement 1 is incorrect because the bell housing is a protective cover for the flywheel and clutch assembly, not a connection between the motor and pump. Statement 2 is true because centrifugal pumps are non-positive displacement pumps, meaning they use centrifugal force to move fluid rather than trapping and displacing a fixed amount of fluid. Statement 3 is true because centrifugal pumps do not have valves to prevent backflow, allowing fluid to flow from the delivery side back to the suction side. Statement 4 is true because the vent plug in a reservoir is used to release trapped air and flush out oil contaminants. Therefore, the correct answer is 2, 3, and 4.

Rate this question:
22.

Which type of pump is used for lifting water from the ground surface to the top of the building?
- A.

  Centrifugal pump
- B.

  Turbine pump
- C.

  Submersible pump
- D.

  All the above
Correct Answer
D. All the above

Explanation
All three types of pumps - centrifugal pump, turbine pump, and submersible pump - can be used for lifting water from the ground surface to the top of a building. A centrifugal pump uses centrifugal force to move the water, a turbine pump uses the energy from a rotating impeller to lift the water, and a submersible pump is designed to be submerged in the water and lift it to the desired height. Therefore, all three types of pumps can be used for this purpose.

Rate this question:
23.

Pumps used in hydraulic applications are
- A.

  Positive displacement pumps
- B.

  Variable displacement pumps
- C.

  Fixed displacement pumps
- D.

  All the above
Correct Answer
D. All the above

Explanation
The correct answer is "all the above" because pumps used in hydraulic applications can be positive displacement pumps, variable displacement pumps, or fixed displacement pumps. Positive displacement pumps deliver a fixed amount of fluid with each stroke, variable displacement pumps can adjust the amount of fluid delivered, and fixed displacement pumps deliver a fixed amount of fluid per revolution. Therefore, all three types of pumps can be used in hydraulic applications depending on the specific requirements and conditions.

Rate this question:
24.

What is a positive displacement pump?
- A.

  Oil from suction side of the pump flows completely to the delivery side
- B.

  Volume of fluid discharged cannot return back to the suction side of the pump
- C.

  Discharges fixed volume of fluid every cycle
- D.

  All the above
Correct Answer
D. All the above

Explanation
A positive displacement pump is a type of pump that operates by trapping a fixed volume of fluid and then displacing it to the delivery side. This means that the oil from the suction side of the pump flows completely to the delivery side, and the volume of fluid discharged cannot return back to the suction side. Therefore, all the given statements are correct and describe the characteristics of a positive displacement pump.

Rate this question:
25.

While operating a positive displacement pump,
- A.

  The shut-off valve should be closed on delivery side
- B.

  The shut-off valve should be closed on suction side
- C.

  The shut-off valve should be opened on delivery side
- D.

  None of the above
Correct Answer
C. The shut-off valve should be opened on delivery side

Explanation
When operating a positive displacement pump, it is necessary to open the shut-off valve on the delivery side. This is because positive displacement pumps work by trapping a fixed amount of fluid and then forcing it into the discharge pipe. By opening the shut-off valve on the delivery side, the pump is able to discharge the fluid and maintain a continuous flow. Closing the shut-off valve on the delivery side would prevent the fluid from being discharged and could cause damage to the pump. Therefore, the correct action is to open the shut-off valve on the delivery side.

Rate this question:
26.

To actuate double acting cylinder using………….. D.C. valve.
- A.

  2/2 D.C. valve
- B.

  3/2 D.C. valve
- C.

  4/3 D.C. valve
- D.

  None of the above
Correct Answer
C. 4/3 D.C. valve

Explanation
A 4/3 D.C. valve is used to actuate a double acting cylinder. This type of valve has four ports and three positions. It allows the control of the flow of fluid to and from the double acting cylinder, enabling the cylinder to move in both directions. The valve can switch between different positions to control the direction of the fluid flow, allowing the cylinder to extend and retract as needed. The other options, 2/2 D.C. valve and 3/2 D.C. valve, do not have the necessary number of ports and positions to actuate a double acting cylinder. Therefore, the correct answer is 4/3 D.C. valve.

Rate this question:
27.

When flow control valve with check valve is placed at inlet of the actuator is known as
- A.

  Bleed off circuit.
- B.

  Meter-in Circuit
- C.

  Meter-out circuit
- D.

  By-pass circuit
Correct Answer
B. Meter-in Circuit

Explanation
A flow control valve with a check valve placed at the inlet of the actuator is known as a meter-in circuit. In this circuit, the flow control valve regulates the flow of fluid into the actuator, while the check valve allows the fluid to flow freely in the reverse direction. This configuration ensures that the actuator receives a controlled flow rate, allowing for precise control of the actuator's speed and position.

Rate this question:
28.

Which of the circuit is more effective for clamping of component during drilling operation.
- A.

  Meter-out circuit
- B.

  By-pass circuit
- C.

  Bleed off circuit.
- D.

  Meter-in Circuit
Correct Answer
A. Meter-out circuit

Explanation
The meter-out circuit is more effective for clamping of components during drilling operations. In this circuit, the flow control valve is placed on the exhaust side of the cylinder, allowing the air to exhaust freely when the cylinder is retracting. This ensures that the clamping force remains constant and the component is securely held in place during the drilling operation. The other circuits mentioned, such as the bypass circuit and bleed off circuit, may not provide the same level of control and stability in clamping the component.

Rate this question:
29.

To divert the pump delivery to the reservoir for the speed control of the actuator is known as……
- A.

  Meter-out circuit
- B.

  By-pass circuit
- C.

  Bleed off circuit.
- D.

  Meter-in Circuit
Correct Answer
C. Bleed off circuit.

Explanation
A bleed off circuit is used to divert the pump delivery to the reservoir in order to control the speed of the actuator. This circuit allows excess fluid to be released from the system, which helps regulate the pressure and flow rate. By bleeding off the excess fluid, the circuit can effectively control the actuator's speed and prevent any potential damage or overloading.

Rate this question:
30.

When the return line of the actuator is connected to the pressure line with the help of D.C. valve is known as…….
- A.

  Sequencing circuit
- B.

  Bleed-off circuit
- C.

  By-pass circuit
- D.

  None of the above
Correct Answer
D. None of the above
31.

The circuit used during downward movement of actuator under heavy load to prevent its overrunning is called…
- A.

  Sequencing circuit
- B.

  Bleed-off circuit
- C.

  By-pass circuit
- D.

  Counterbalance circuit
Correct Answer
D. Counterbalance circuit

Explanation
A counterbalance circuit is used during the downward movement of an actuator under heavy load to prevent its overrunning. This circuit helps to balance the weight of the load and provides resistance to the downward movement, ensuring that the actuator does not move too quickly or uncontrollably. By using a counterbalance circuit, the actuator can safely lower the load without causing any damage or overrunning.

Rate this question:
32.

The circuit used to perform more than two operations in a sequence is known as…..
- A.

  Sequencing circuit
- B.

  Bleed-off circuit
- C.

  By-pass circuit
- D.

  None of the above
Correct Answer
A. Sequencing circuit

Explanation
A sequencing circuit is used to perform more than two operations in a sequence. It is designed to control the order and timing of operations in a circuit, ensuring that each operation occurs in the correct sequence. This type of circuit is commonly used in digital systems, where multiple operations need to be performed in a specific order to achieve the desired outcome.

Rate this question:
33.

Which method is used for motion synchronization?
- A.

  Flow divider
- B.

  Rack and Pinion arrangement
- C.

  Mechanical coupling of actuators
- D.

  All of the above
Correct Answer
D. All of the above

Explanation
All of the above options (flow divider, rack and pinion arrangement, and mechanical coupling of actuators) are methods used for motion synchronization. Flow dividers are used to distribute hydraulic fluid evenly among multiple actuators, ensuring synchronized motion. Rack and pinion arrangement is a mechanical system that converts rotational motion into linear motion, allowing for synchronized movement. Mechanical coupling of actuators involves connecting multiple actuators together mechanically, enabling them to move in sync. Therefore, all of these methods can be used for motion synchronization.

Rate this question:

1
0
34.
1. What is the maximum operating pressure of Pneumatic system?
- A.

  10 bar
- B.

  20 bar
- C.

  30 bar
- D.

  40 bar
Correct Answer
A. 10 bar

Explanation
The maximum operating pressure of a pneumatic system is 10 bar. This means that the system should not be operated at pressures higher than 10 bar to prevent any damage or failure.

Rate this question:
35.

A pneumatic symbol is:
- A.

  Different from a hydraulic symbol used for the same function
- B.

  The same as a hydraulic symbol used for the same function
- C.

  Not to be compared to a hydraulic symbol used for the same function
- D.

  None of the mentioned
Correct Answer
A. Different from a hydraulic symbol used for the same function

Explanation
A pneumatic symbol is different from a hydraulic symbol used for the same function because pneumatic systems use compressed air to transmit and control power, while hydraulic systems use liquid (usually oil) to transmit and control power. Therefore, the symbols used to represent these systems will be different in order to accurately represent the specific components and functions of each system.

Rate this question:
36.

Pneumatic systems usually do not exceed:
- A.

  1 hp
- B.

  1 to 2 hp
- C.

  2 to 3 hp
- D.

  4 to 5 hp
Correct Answer
A. 1 hp

Explanation
Pneumatic systems typically do not exceed 1 hp because they rely on compressed air to generate power. Compressed air is not as powerful as other energy sources like electricity or fuel, so it is typically used for smaller applications that do not require a lot of power. Therefore, it is unlikely for pneumatic systems to exceed 1 hp in order to ensure efficient and safe operation.

Rate this question:
37.

Most hydraulic circuits:
- A.

  Operate from a central hydraulic power unit
- B.

  Use air-over-oil power units
- C.

  Have a dedicated power unit
- D.

  Does not have dedicated power unit
Correct Answer
A. Operate from a central hydraulic power unit

Explanation
Most hydraulic circuits operate from a central hydraulic power unit. This means that multiple hydraulic components, such as cylinders and valves, are connected to a single power unit that generates hydraulic pressure. This central power unit supplies the necessary hydraulic fluid to all the components in the circuit, allowing them to function properly. This centralized system simplifies maintenance and control of the hydraulic circuit, as all components are connected to a single power source.

Rate this question:
38.

Hydraulic and pneumatic circuits:
- A.

  Perform the same way for all functions
- B.

  Perform differently for all functions
- C.

  Perform the same with some exceptions
- D.

  Does not perform all the functions
Correct Answer
C. Perform the same with some exceptions

Explanation
Hydraulic and pneumatic circuits generally perform the same way for all functions, but there are some exceptions. While both systems use fluid to transmit power, hydraulic circuits use liquid (usually oil) while pneumatic circuits use compressed air or gas. The main difference is that hydraulic circuits can generate higher forces and are more suitable for heavy-duty applications, while pneumatic circuits are generally used for lighter tasks. Additionally, hydraulic circuits are more resistant to heat and can operate at higher temperatures. Therefore, although the two systems have similarities, there are some variations in their performance depending on the specific function and application.

Rate this question:
39.

The lubricator in a pneumatic circuit is the:
- A.

  First element in line
- B.

  Second element in line
- C.

  Last element in line
- D.

  Third element in line
Correct Answer
C. Last element in line

Explanation
The lubricator in a pneumatic circuit is the last element in line because it is typically placed after all other components such as valves and actuators. Its purpose is to supply a controlled amount of lubricating oil to the compressed air, ensuring smooth operation of the components and preventing wear and damage. Placing it last allows for efficient distribution of lubrication throughout the entire system, as the air passes through the lubricator before reaching the components.

Rate this question:
40.

Series circuits work on both hydraulic and pneumatic actuators.
- A.

  True
- B.

  False
Correct Answer
B. False

Explanation
Series circuits do not work on both hydraulic and pneumatic actuators. Hydraulic actuators use a liquid, usually oil, to transmit force, while pneumatic actuators use compressed air or gas. In a series circuit, the components are connected in a single path, meaning that if one component fails, the entire circuit will be disrupted. However, hydraulic and pneumatic actuators are typically used in parallel circuits, where multiple actuators can operate independently. Therefore, the statement is false.

Rate this question:
41.

When comparing first cost of hydraulic systems to pneumatic systems, generally they are:
- A.

  More expensive to purchase
- B.

  Less expensive to purchase
- C.

  Cost is same
- D.

  Cost is not required
Correct Answer
B. Less expensive to purchase

Explanation
Hydraulic systems are generally less expensive to purchase compared to pneumatic systems. This is because hydraulic systems use incompressible fluids to transmit power, which are more efficient and require fewer components. Pneumatic systems, on the other hand, use compressed air which requires additional equipment such as compressors and air storage tanks, making them more expensive. Additionally, hydraulic systems can handle higher pressures and have greater power density, allowing for smaller and more cost-effective components.

Rate this question:
42.

Time Delay valve consist of
- A.

  FCV, Air Reservoir, 4/2 D.C. valve
- B.

  PCV, Air Reservior, 3/2 D.Cvalve
- C.

  FCV, Air Reservoir, 3/2 D.C. valve
- D.

  None of the above
Correct Answer
C. FCV, Air Reservoir, 3/2 D.C. valve

Explanation
The correct answer is FCV, Air Reservoir, 3/2 D.C. valve. This combination is the most suitable for a time delay valve. The FCV (Flow Control Valve) is used to control the flow rate of the air, while the Air Reservoir stores the compressed air. The 3/2 D.C. valve is a type of directional control valve that has three ports and two positions. This valve is commonly used in pneumatic systems to control the flow of air. Therefore, the combination of FCV, Air Reservoir, and 3/2 D.C. valve is the most appropriate for a time delay valve.

Rate this question:
43.

Which of the following is not the application of Hydraulics system
- A.

  Dumper
- B.

  Spray Painting
- C.

  Cranes
- D.

  Back hoe loader
Correct Answer
B. Spray Painting

Explanation
Spray painting is not an application of a hydraulic system. Hydraulics systems are commonly used in heavy machinery such as dumpers, cranes, and backhoe loaders to provide power and control. However, spray painting does not require the use of hydraulics. Instead, it typically relies on compressed air or other methods to propel paint particles onto a surface.

Rate this question:
44.

Heavy lifting work is often accomplished by shifting fluids in big machines. The power system of such machines can be described as
- A.

  Reciprocating
- B.

  Pneumatic
- C.

  Hydraulic
- D.

  Hybrid
Correct Answer
C. Hydraulic

Explanation
The correct answer is hydraulic because hydraulic systems use fluids, typically oil, to transmit power and accomplish heavy lifting work. These systems work by applying force to a fluid, which then transfers the force to different parts of the machine, allowing it to perform tasks such as lifting heavy objects. Hydraulic systems are commonly used in construction equipment, such as cranes and excavators, as well as in industrial machinery. They offer high power and precision, making them suitable for heavy lifting work.

Rate this question:
45.

The scientific principle that makes hydraulic systems possible is
- A.

  Pascal’s principle
- B.

  Boyle’s law
- C.

  Bernoulli’s principle
- D.

  The fluid flow principle
Correct Answer
A. Pascal’s principle

Explanation
Pascal's principle is the scientific principle that makes hydraulic systems possible. This principle states that when pressure is applied to a fluid in a closed system, it is transmitted equally in all directions. In a hydraulic system, this principle allows for the transmission of force through a confined fluid, enabling the amplification of force. By applying a small force to a small piston, for example, a larger force can be generated on a larger piston, allowing for the lifting or moving of heavy objects. Boyle's law, Bernoulli's principle, and the fluid flow principle are not directly related to the functioning of hydraulic systems.

Rate this question:
46.

Which of the following reasons make water unsuitable to use as a fluid in hydraulic systems? 1. poor lubrication 2. high viscosity 3. more leakage 4. quickly evaporates
- A.

  1 and 3
- B.

  2 and 4
- C.

  1, 3 and 4
- D.

  All the above
Correct Answer
C. 1, 3 and 4

Explanation
Water is unsuitable to use as a fluid in hydraulic systems because it has poor lubrication properties, meaning it does not provide sufficient lubrication to the moving parts of the system. Additionally, water is prone to leakage, which can lead to inefficiencies and potential damage to the system. Lastly, water quickly evaporates, which can result in a loss of fluid and a decrease in system performance. Therefore, options 1, 3, and 4 are the correct reasons that make water unsuitable for use in hydraulic systems.

Rate this question:
47.

Which of the following statements are true? 1. low viscosity fluids have higher leakage 2. high viscosity fluids have high pressure drop 3. low viscosity fluids consume more power 4. low viscosity leads to wear of components
- A.

  1 and 2
- B.

  1, 2 and 3
- C.

  1, 2 and 4
- D.

  2, 3 and 4
Correct Answer
C. 1, 2 and 4

Explanation
Low viscosity fluids have higher leakage because they can easily flow through small gaps and openings. High viscosity fluids have high pressure drop because they resist flow and create more resistance in the system. Low viscosity fluids can lead to wear of components because they have less lubrication properties and can cause increased friction between moving parts.

Rate this question:
48.

In industrial applications hydraulic fluids have viscosity grade ranging from
- A.

  20 to 50
- B.

  70 to 95
- C.

  46 to 68
- D.

  15 to 44
Correct Answer
C. 46 to 68

Explanation
In industrial applications, hydraulic fluids need to have a specific viscosity grade to ensure optimal performance. The viscosity grade determines the fluid's resistance to flow, which is crucial for proper lubrication and efficient operation of hydraulic systems. The viscosity grade range of 46 to 68 is commonly used in industrial applications as it provides a balance between low temperature fluidity and high temperature stability. This range allows the fluid to maintain its viscosity and flow characteristics across a wide range of operating temperatures, making it suitable for various industrial environments.

Rate this question:
49.

High viscosity fluids have
- A.

  low pressure drop
- B.

  Less power consumption
- C.

  Slow operation
- D.

  All the above
Correct Answer
C. Slow operation

Explanation
High viscosity fluids have slow operation because they are thick and resistant to flow. The high resistance to flow results in slower movement of the fluid through pipes or channels, causing the overall operation to be slower compared to fluids with lower viscosity.

Rate this question:
50.

What is viscosity index?
- A.

  Effect of pressure on changes in viscosity
- B.

  Effect of temperature on changes in viscosity
- C.

  Effect of resistance between two surfaces
- D.

  None of the above
Correct Answer
B. Effect of temperature on changes in viscosity

Explanation
Viscosity index refers to the measure of how the viscosity of a fluid changes with temperature. It indicates the fluid's resistance to flow at different temperatures. As temperature increases, the viscosity of most fluids decreases, meaning they become less resistant to flow. The viscosity index helps to determine how much the viscosity of a fluid changes with temperature, which is important in various industries, such as automotive and lubricants, where the performance of fluids under different temperature conditions is crucial.

Rate this question:

1
0

Quiz Review Timeline +

Our quizzes are rigorously reviewed, monitored and continuously updated by our expert board to maintain accuracy, relevance, and timeliness.

Current Version
Mar 22, 2023

Quiz Edited by
ProProfs Editorial Team
May 07, 2020

Quiz Created by
Anil Karanjkar

Industrial Hydraulics And Pneumatics Quiz!

Upload your response

Which of the following systems generate more energy when used in industrial applications?

Which type of compressor requires a reservoir for compressed air and why?

Which of the following factors is considered while selecting a compressor?

Where is an inter-cooler connected in a two stage compressor?

Which valve is also known as memory valve?

Which of the following is a gas charged accumulator?

Which of the following gas is used in gas charged accumulator?

Intensifier used in pneumatic systems has output pressure

Function of muffler in Pneumatic system is

The seals prevents even a minute amount of fluid leakage is called

The seals are used between the surfaces of moving hydraulic parts

Schedule no. of pipe is related to

Shuttle valve is known as

When only a portion of the oil is passed through the filter is known as

In hydraulic systems,

Which of the following is used as a component in hydraulic power unit?

Rotary motion in a hydraulic power unit is achieved by using

Accessories used in a hydraulic power unit adjust pressure and are used to generate flow and direction of the fluid

Which of the following is used as an accessory in hydraulic power unit?

Which type of pump is used for lifting water from the ground surface to the top of the building?

Pumps used in hydraulic applications are

What is a positive displacement pump?

While operating a positive displacement pump,

To actuate double acting cylinder using………….. D.C. valve.

When flow control valve with check valve is placed at inlet of the actuator is known as

Which of the circuit is more effective for clamping of component during drilling operation.

To divert the pump delivery to the reservoir for the speed control of the actuator is known as……

When the return line of the actuator is connected to the pressure line with the help of D.C. valve is known as…….

The circuit used during downward movement of actuator under heavy load to prevent its overrunning is called…

The circuit used to perform more than two operations in a sequence is known as…..

Which method is used for motion synchronization?

What is the maximum operating pressure of Pneumatic system?

A pneumatic symbol is:

Pneumatic systems usually do not exceed:

Most hydraulic circuits:

Hydraulic and pneumatic circuits:

The lubricator in a pneumatic circuit is the:

Series circuits work on both hydraulic and pneumatic actuators.

When comparing first cost of hydraulic systems to pneumatic systems, generally they are:

Time Delay valve consist of

Which of the following is not the application of Hydraulics system

Heavy lifting work is often accomplished by shifting fluids in big machines. The power system of such machines can be described as

The scientific principle that makes hydraulic systems possible is

Which of the following reasons make water unsuitable to use as a fluid in hydraulic systems? 1. poor lubrication 2. high viscosity 3. more leakage 4. quickly evaporates

Which of the following statements are true? 1. low viscosity fluids have higher leakage 2. high viscosity fluids have high pressure drop 3. low viscosity fluids consume more power 4. low viscosity leads to wear of components

In industrial applications hydraulic fluids have viscosity grade ranging from

High viscosity fluids have

What is viscosity index?
