The program uses nested printf statements to print the value of i four times. The innermost printf statement prints the value of i, which is 1. The next printf statement prints the return value of the innermost printf statement, which is 1. This process continues for the remaining printf statements. Therefore, the output of the program is 1111.

The given answer correctly identifies that the given statement is an example for Karnaugh mapping. Karnaugh mapping is a method used in digital circuit design to simplify Boolean algebra expressions and minimize the number of logic gates required. This technique involves creating a truth table and grouping similar terms to identify patterns and simplify the expression. Therefore, the given statement serves as an example of applying Karnaugh mapping in a specific context.

The program starts by initializing three variables: i with a value of 10, j with a value of 5, and k with a value of 0. Then, the value of i is assigned to j and incremented by 1, resulting in j becoming 10 and i becoming 11. Next, j is incremented by 1, becoming 11, and its value is assigned to k. Finally, k is incremented by 1, becoming 12. The value of x is then assigned the value of k, which is 12. Therefore, the output of the program is 12.

The code is attempting to return an integer value (1) from a function with a void return type (foo). This is not allowed and will result in a compile time error. The correct answer is Compile time error.

The circuit shown in the figure is a Master-Slave D Flip Flop. This can be determined by analyzing the circuit diagram and identifying the characteristics of each type of flip flop. The presence of two D flip flops connected in a master-slave configuration indicates that it is a Master-Slave D Flip Flop.

The program initializes the variable k to -3 and enters a for loop. The condition for the loop is that k is less than -5, which is not true since k is -3. Therefore, the loop does not execute and the program does not print anything. Hence, the output of the program is "Nothing".

A variable declared in a function is local to that function and cannot be accessed outside of it, including in the main function. Therefore, the statement "A variable declared in a function can be used in main" is false.

The code first initializes the variable x to 0. Then it enters the if statement and since x is equal to 0, it prints "true, ". After that, it proceeds to the next printf statement and prints the value of x which is 0. Therefore, the output of the code is "true, 0".

The given C code defines a function "m()" which prints "hi" using the printf() function. The main() function calls the m() function. Therefore, when the code is executed, it will output "hi".

The output of this C code is "1 2". The code first calls the main function, which then calls the foo function. Inside the foo function, "2" is printed. After the foo function is executed, the main function continues and prints "1". Therefore, the overall output is "1 2".

The operator with the lowest precedence is the comma operator (,). This operator is used to separate expressions and evaluate them from left to right. It has the lowest precedence, meaning it is evaluated last among the given operators. Therefore, the comma operator has the lowest priority in terms of precedence.

A switch statement in programming accepts multiple data types, including int, char, and long. Therefore, the correct answer is "All of the mentioned." This means that a switch statement can be used with any of these data types as input.

The output of the program is 101. This is because the program uses nested for loops to increment the value of 'a'. The first loop initializes 'a' to 0 and continues as long as 'a' is less than or equal to 10. The second loop also initializes 'a' to 0 and continues as long as 'a' is less than or equal to 10. The third loop initializes 'a' to 0 and continues as long as 'a' is less than or equal to 100, but it does not have any statements inside the loop. After the third loop, the printf statement is executed, which prints the value of 'a' which is 101.

The code starts by initializing the variable x to 0. The first if statement checks if x is equal to 1, which is false. Therefore, the code skips the first if statement and moves on to the else statement. The else statement prints "inside else". So, the output of this code is "inside else".

The code will output "10 3" because the printf function is given two format specifiers ("%d") but only two arguments (i and j). The third argument (k) is not being used in the printf function, so it does not affect the output.

The code uses the printf function to print the string "myworld" with a width of 9 characters. The * in the format specifier %*s indicates that the width is specified by the next argument, which is i. Since i is 9, the output will be "myworld" with 9 spaces to the left of it.

The correct answer is "a = b = c = d = 5;". This is because in this method, the value of 5 is assigned to all variables a, b, c, and d in a single line. This is a valid assignment syntax in many programming languages.

The code snippet declares two variables, x and y, with initial values of 1 and 2 respectively. The if statement checks if both x and y satisfy the condition x && y == 1. Since x is not equal to zero, the condition evaluates to true. However, y is not equal to 1, so the condition as a whole evaluates to false. Therefore, the else block is executed and "false" is printed as the output.

The given C snippet includes a for loop that has three parts: initialization (i++), condition (i == 1), and increment (i = 2).

Initially, the value of i is 0. In the first iteration, i is incremented to 1. Since the condition i == 1 is true, the loop body is executed, and the value of i (which is 2) is printed.

In the next iteration, i is again incremented to 3. However, the condition i == 1 is false, so the loop is terminated.

Finally, outside the loop, the value of i (which is 2) is printed.

Therefore, the output of this C snippet is 1 2.

An increase in the base recombination of a BJT will increase the breakdown voltage. This is because base recombination refers to the recombination of charge carriers in the base region of the transistor. When there is an increase in base recombination, more charge carriers are lost, leading to a decrease in the number of charge carriers available for conduction. This reduction in charge carriers reduces the current flow through the transistor, which in turn increases the breakdown voltage.

The given if-else statement "if(if(a == 1)){}" is invalid because the condition inside the outer if statement is another if statement, which is not allowed. The condition inside an if statement should be a boolean expression, but in this case, it is another if statement, which is not a valid boolean expression.

The do-while loop is more suitable for first performing the operation and then testing the condition. This is because the do-while loop executes the code block at least once before checking the condition. Therefore, it guarantees that the operation will be performed at least once, regardless of the condition. In contrast, the for loop and while loop first test the condition before executing the code block, so they may not execute the operation if the condition is initially false.

All of the mentioned options (for, while, do-while) are examples of iteration in the C programming language. Iteration is a process of repeatedly executing a block of code until a certain condition is met. The "for" loop is used when the number of iterations is known beforehand. The "while" loop is used when the number of iterations is not known beforehand, but a condition needs to be checked before each iteration. The "do-while" loop is similar to the "while" loop, but it checks the condition after each iteration. Therefore, all of the mentioned options are valid examples of iteration in C.

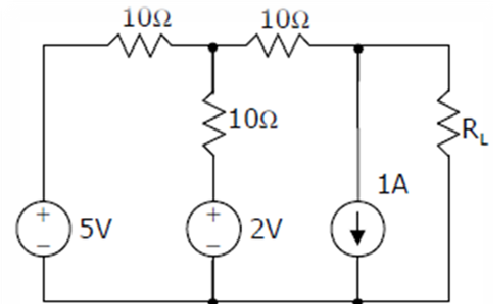

The value of the load resistance affects the power transferred to the load in a circuit. When the load resistance is equal to the internal resistance of the source, the power transferred is maximum. In this case, the load resistance of 15Ω is the closest to the internal resistance, making it the correct answer.

The program starts by calling the function rec(10) from the main function. The rec function takes an integer parameter 'a'. Inside the rec function, it checks if 'a' is equal to 0, and if so, it returns. Otherwise, it prints the value of 'a' and then recursively calls the rec function with 'a' decremented by 1. This process continues until 'a' becomes 0. So, the program will print the numbers from 10 to 1 in descending order, resulting in the output "10987654321".

The output of this C code is 1. The code declares three variables: x with a value of 1, y with a value of 2, and z. The expression "x & y == 2" is evaluated using the bitwise AND operator "&". Since the bitwise AND operator has higher precedence than the equality operator "==", the expression is equivalent to "x & (y == 2)". The equality operator compares the value of y to 2, which is true, resulting in 1. Then, the bitwise AND operator is applied to 1 and 1, resulting in 1. Finally, the value of z, which is 1, is printed.

The given code will result in an infinite loop. The main function calls the func function, which prints "hi" and then calls itself again. This process will continue indefinitely, resulting in the output "hi" being printed infinitely.

The figure shows the switch representation of an AND gate. The AND gate is a logic gate that outputs a high signal only when all of its inputs are high. In the figure, there are two switches connected in series, indicating that both switches must be closed (or in the ON position) for the output to be high. This matches the behavior of an AND gate, making it the correct answer.

The given code snippet consists of two loops. The first loop is a while loop that increments the value of i until it becomes greater than n. The second loop is a do-while loop that also increments the value of i until it becomes greater than or equal to n.

In both cases, the initial value of i is 0.

In the first loop, the condition is tested n times because i starts at 0 and is incremented n times until it becomes greater than n.

In the second loop, the condition is tested n+1 times because i starts at 0 and is incremented n+1 times until it becomes greater than or equal to n.

Therefore, the correct answer is n + 1, n + 1.

The code will output "inside if" because the condition in the if statement (x > 0) is true. The else if statement will not be executed because the condition (x > 0) is not true.

The code snippet uses the ternary operator to check if 1 is less than 2. Since this condition is always true, the expression after the '?' is executed, which is "return 1". Therefore, the output of the code is 1.

The code declares a character pointer variable `str` and assigns it an empty string. The code then enters a do-while loop, which will always execute at least once. Inside the loop, the string "hello" is printed. Since the condition for the loop is `str`, which is a non-null pointer, the loop will continue to execute indefinitely, resulting in "hello" being printed infinite times.

The program initializes the variable "a" with a value of -10. The while loop runs as long as "a" is non-zero, which means it will continue until "a" becomes 0. Inside the loop, "a" is incremented by 1 on each iteration. Since "a" starts at -10 and is incremented by 1 each time, it will eventually reach 0 after 10 iterations of the loop. Therefore, the output of the program will be 0.

The output of this C code will be 3.

In the do-while loop, the variable x is assigned the value of x++ which is a post-increment operation. This means that the current value of x is assigned to x, and then the value of x is incremented.

Since the initial value of x is 3, the assignment statement x = x++ will assign the value 3 to x and then increment it to 4.

However, the value of x is not used or updated in the condition of the do-while loop, which is i != 3. Therefore, the loop will only execute once, and the value of x will remain 3.

Hence, the output of the code will be 3.

The code initializes three variables: a with the value 2, b with the value 0, and y with the result of a conditional expression. The conditional expression checks if b is equal to 0. Since it is, the expression evaluates to a. Therefore, the value of y is 2. The code then prints the value of y, which is 2.

The program initializes the variable "a" to 0. It then enters a for loop that continues as long as "a" is less than or equal to 10. In each iteration of the loop, "a" is incremented by 1. After the loop ends, the program prints the value of "a" which is 11. Therefore, the output of the program is 11.

The code snippet defines two variables, n and m, both initialized to 0. The code then checks if n is greater than 0. Since n is 0, the condition is false and the code does not execute the inner if statement. Therefore, no output will be printed.

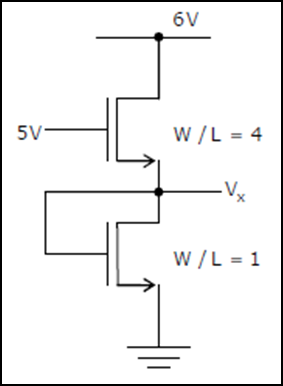

The given figure contains 2 NMOS transistors.

In CMOS technology, shallow P-well or N-well regions are formed using low energy ion-implantation. Ion-implantation involves bombarding the semiconductor material with ions of the desired dopant, which are accelerated to a high energy and then implanted into the material. By using low energy, the ions can be implanted at a shallow depth, resulting in the formation of shallow P-well or N-well regions. This technique allows for precise control over the dopant concentration and depth, making it suitable for creating shallow regions in CMOS technology.

The program initializes an integer variable 'a' with the value 65. Then, it assigns the value of 'a' to a character variable 'c'. Since the ASCII value of 65 corresponds to the character 'A', 'c' will hold the value 'A'. The printf statement then prints the value of 'c' followed by the value of 'a', resulting in the output "65 A".

The code is missing a format specifier in the printf statement. It should have three format specifiers to match the three variables being passed. As a result, the code will print the values of i and j correctly, but the third value will be some garbage value since there is no corresponding variable to be printed.

The correct answer is "0We are Happy".

The code first calls the inner printf function with an empty string as the argument. This inner printf function returns the number of characters printed, which is 0 in this case.

Then, the outer printf function is called with the result of the inner printf function as the argument. Since the inner printf function printed 0 characters, the outer printf function receives a 0 as the argument.

The outer printf function then prints "0" and returns the number of characters printed, which is 1.

Finally, the if statement evaluates to true because the outer printf function returned a non-zero value. Therefore, "We are Happy" is printed.

The code first declares two functions, foo() and f(). In the main() function, f() is called, which prints "1 ". Then, within f(), foo() is called, which prints "2 ". Therefore, the output of the code is "1 2".

In this C snippet, the variable "a" is assigned the value 65. Then, the variable "c" is assigned the value of "a", which is the character 'A' in ASCII. Next, the variable "d" is assigned the sum of "a" and "c", which is 65 + 65 = 130. Finally, the value of "d" is printed, resulting in the output of 130.

The code initializes the variable "a" with the value 1. In the first if statement, "a--" is evaluated, which means the value of "a" is used in the condition and then decremented by 1. Since the initial value of "a" is 1, the condition is true and "True" is printed. In the second if statement, "a++" is evaluated, which means the value of "a" is used in the condition and then incremented by 1. Since the value of "a" is now 0, the condition is false and "False" is not printed. Therefore, the output of the code is "True".

The given C code will result in a compile-time error. This is because the expression "y + x /= x / y" violates the order of operations in C. The division operation "x / y" is evaluated first, which results in 1. Then, the compound assignment operator "/=" is applied to "x" and the result of the division, which is not allowed. Hence, the code will fail to compile.

The maximum number of prime implicants for a 5-variable Boolean function is 16. This can be determined using the formula 2^n, where n is the number of variables. In this case, 2^5 = 32, but since all 32 implicants cannot be prime, the maximum number is reduced to 16.

The response of the system to a unit step input is given by tu(t). This means that the output of the system at any time t is equal to t multiplied by the unit step function u(t). The unit step function is zero for negative values of t and one for positive values of t. Therefore, the response of the system starts at zero and then increases linearly with time.

The output of this C code is "float". This is because the conditional expression `(x == 2) ? f : i` is evaluated at runtime. Since `x` is not equal to 2, the expression evaluates to `i`, which is a short int. The `sizeof` operator is then used to determine the size of the expression. Since the size of `i` is not equal to the size of a float, the first if statement is not executed. The second if statement is then executed, which prints "float" as the output.

The program will result in a compile time error because the function `printf` is being redefined with a different return type. The original `printf` function is declared in the standard library and has a return type of `int`, but in the program, it is redefined with a return type of `void`. This causes a conflict and the compiler throws an error.
