The Nrca Roofing Manual: Steep Slope Roof Systems
.jpg "The Nrca Roofing Manual: Steep Slope Roof Systems - Quiz")
- 1.

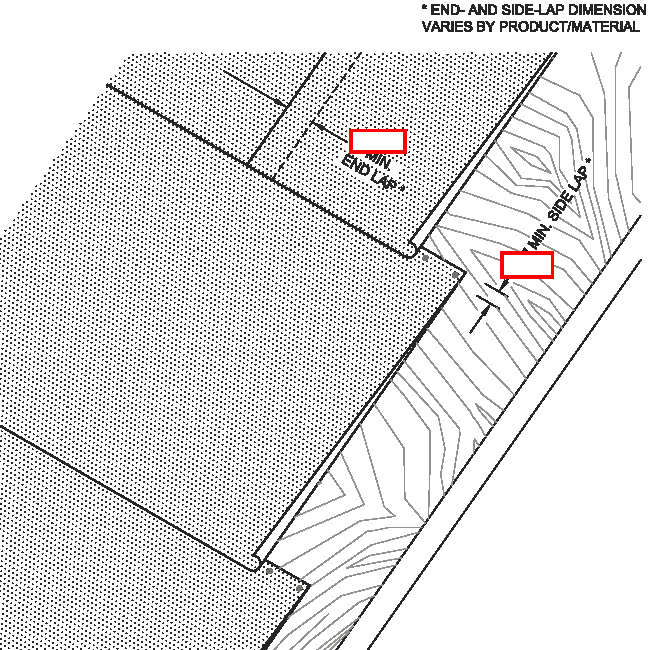

Review the image. Although these vary by product and system - what is the standard minimum for a end lap and side lap?
- A.
End Lap = 2", Side Lap = 2"
- B.
End Lap = 3", Side Lap = 2"
- C.
End Lap = 4", Side Lap = 4"
- D.
End Lap = 4", Side Lap = 2"
Correct Answer
D. End Lap = 4", Side Lap = 2"Explanation
Chapter 2—Underlayments - Page 26Rate this question:
-
- 2.

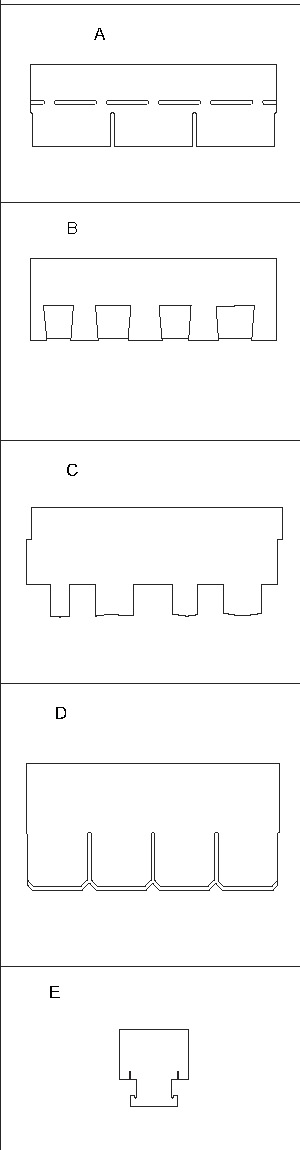

Review the image and select the correct option:
- A.
A = Interlocking Shingle, B = Double Laminate, C = Specialty, D = Triple, E = Multi-Tab
- B.
A = Interlocking Shingle, B = Triple Laminate, C = Double Tab, D = Triple, E = Multi-Tab
- C.
A = Three-Tab Shingle, B = Laminated Shingle, C = Specialty Shingle, D = Specialty Laminated, E = Interlocking Shingle
- D.
A = Three-Tab Shingle, B = Laminated Shingle, C = Specialty Shingle, D = Specialty Laminated, E = DoubleLocking Shingle
Correct Answer
C. A = Three-Tab Shingle, B = Laminated Shingle, C = Specialty Shingle, D = Specialty Laminated, E = Interlocking ShingleExplanation
Chapter 3—Asphalt Shingles - Page 32Rate this question:
-
- 3.
Standard-sized shingles are _______ inches-wide, or __________ inches-wide for metric. Typical exposure for standard-sized shingles is ________ inches, or _______ for metric.
- A.
34", 37" - 4", 5"
- B.
36", 39 5/8" - 5", 5 5/8"
- C.
36", 39 1/3" - 5", 5 1/3"
- D.
36", 38" - 4", 6"
Correct Answer
B. 36", 39 5/8" - 5", 5 5/8"Explanation
Chapter 3—Asphalt Shingles - Page 40Rate this question:
-
- 4.
Starter courses are installed because they shed water that may migrate through the joints and cutouts of the shingles in the overlying first course and hold the leading edge of the first course.
- A.
True
- B.
False
Correct Answer
A. TrueExplanation
Chapter 3—Asphalt Shingles - Page 40Rate this question:
-
- 5.

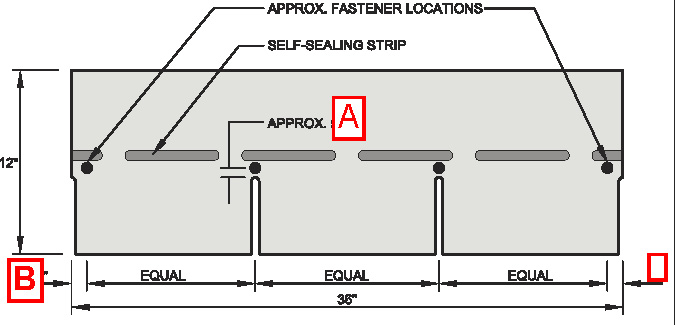

Review the image and select the correct answer:
- A.
A = 5/8", B = 1"
- B.
A = 1/3", B = 1 1/2"
- C.
A = 1/4", B = 1"
- D.
A = 1", B = 1"
Correct Answer
A. A = 5/8", B = 1"Explanation
Chapter 3—Asphalt Shingles - Page 43Rate this question:
-
- 6.
With asphalt shingle roof systems, there are three basic types of valleys:
- A.
Open Valley, Modified valley, and Bituminous valley
- B.
Open Valley, Modified valley, and Woven valley
- C.
Open Valley, Cut valley, and Woven valley
- D.
Open Valley, Closed-cut valley, and Woven valley
Correct Answer
D. Open Valley, Closed-cut valley, and Woven valleyExplanation
Chapter 3—Asphalt Shingles - Page 47Rate this question:
-
- 7.

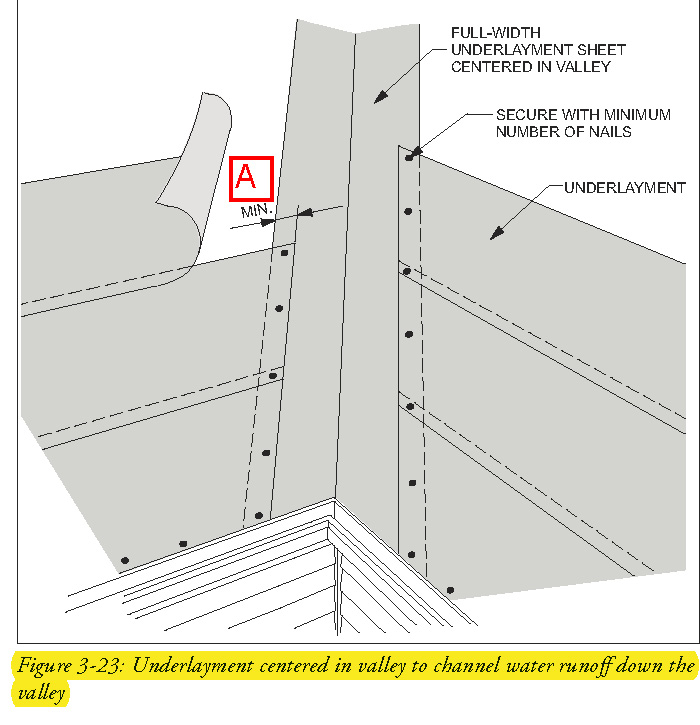

Review the image and select the correct option:
- A.
A = Lap = 2" MIN.
- B.
A = Lap = 4" MIN.
- C.
A = Lap = 6" MIN.
- D.
A = Lap = 8" MIN.
Correct Answer
C. A = Lap = 6" MIN.Explanation
Chapter 3—Asphalt Shingles - Page 47Rate this question:
-
- 8.

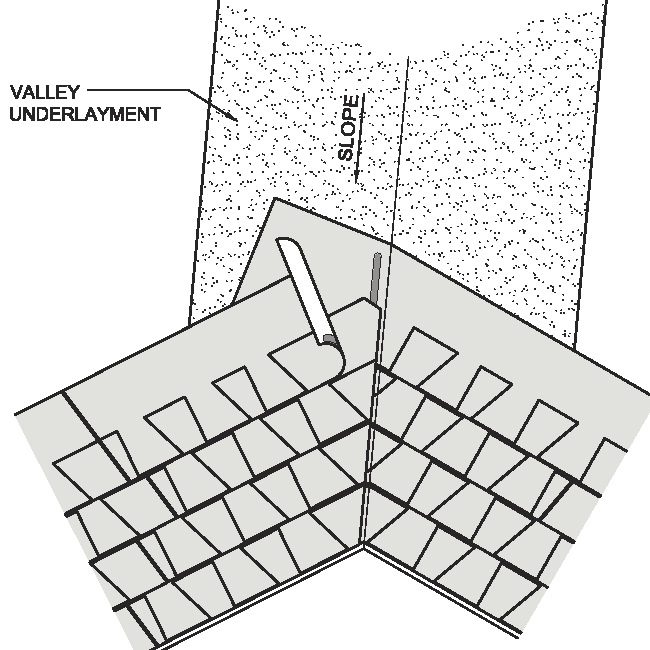

Review the image and select the correct option:
- A.
This is an example of an Open Valley
- B.
This is an example of an Closed Cut Valley
- C.
This is an example of an Woven Valley
Correct Answer
B. This is an example of an Closed Cut ValleyExplanation
Chapter 3—Asphalt Shingles - Page 49Rate this question:
-
- 9.

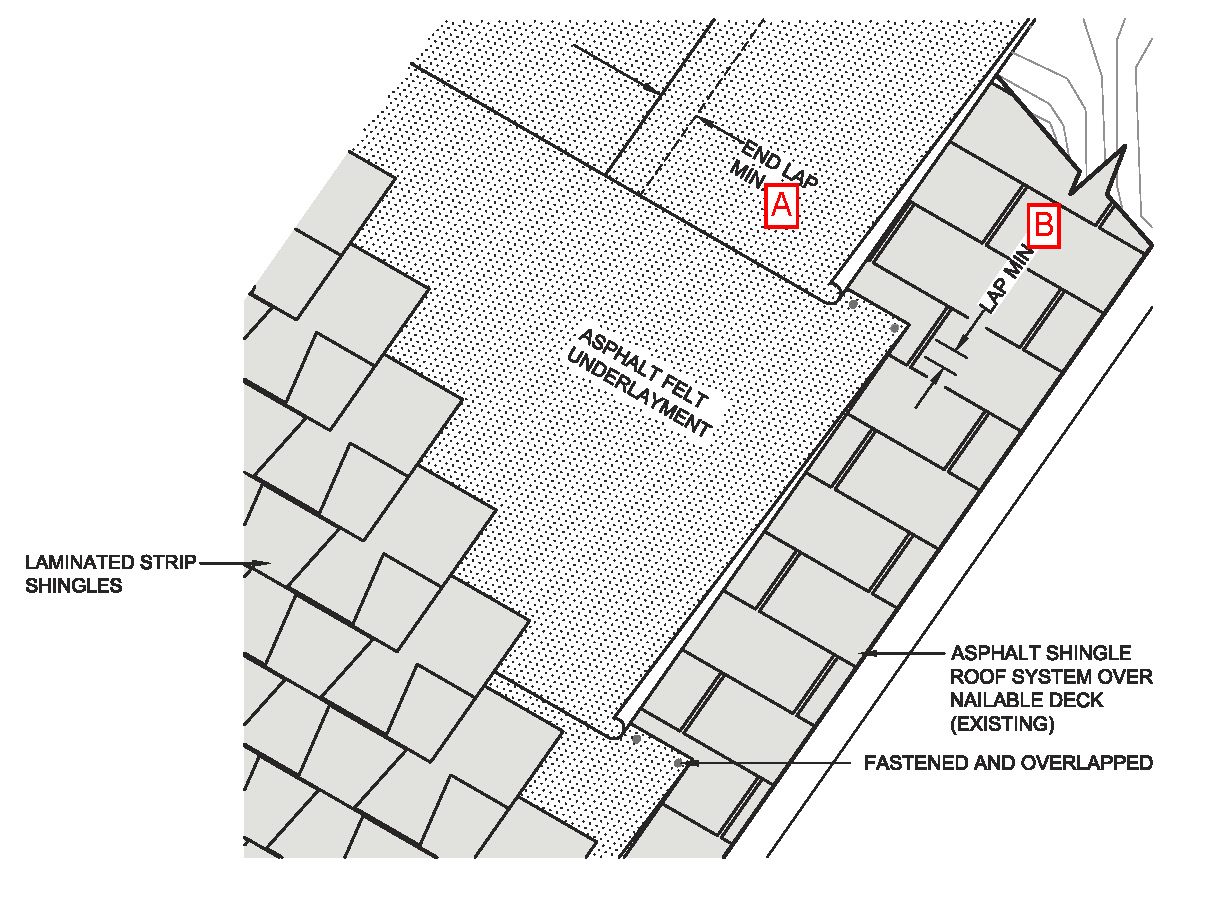

Review the image and select the correct option:
- A.
A = 4", B = 2"
- B.
A = 8", B = 4"
- C.
A = 2", B = 4"
- D.
A = 4", B = 8"
Correct Answer
A. A = 4", B = 2"Explanation
Chapter 5—Roof Re-covering - Page 72Rate this question:
-
- 10.

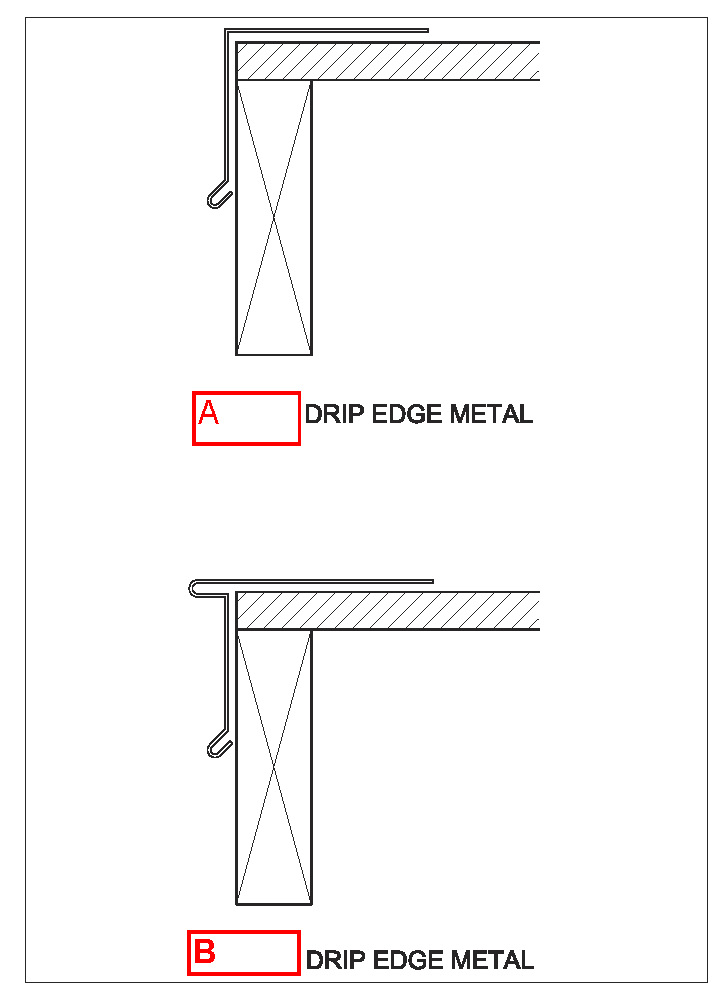

Review the image and select the correct option:
- A.
A = A-Type, B = B-Type
- B.
A = L-Type, B = T-Type
- C.
A = T-Type, B = L-Type
- D.
A = Z-Type, B = T-Type
Correct Answer
B. A = L-Type, B = T-TypeExplanation
Chapter 5—Roof Re-covering - Page 46Rate this question:
-
.jpg "Review the image and select the correct option:")
.jpg "Review the image and select the correct option:")
.jpg "Review the image and select the correct option:")
.jpg "Review the image and select the correct option:")
.jpg "Review the image and select the correct option:")
