CCNA LAN Switching and Wireless Final
Reduced contention for bandwidth
Reduced size of the physical layout
Increased fault tolerance of the network
Elimination of the need for layer three functionality
Simplification of management and troubleshooting
Rate this question:
An Ethernet switch
A wireless access point
Another wireless computer
A hard-wired computer on the network
Rate this question:
The hosts transmit a jam signal to ensure that all hosts on the network are aware that a collision has occurred.
Because they are operating in full-duplex mode, the hosts resume listening for traffic in preparation for sending future messages.
Because the hub will temporarily block traffic from one of the hosts, that host will be allowed to-transmit once the wire is clear.
Hosts A and C are assigned shorter back off values to provide them priority to access the media for retransmission.
After the back off period of a host, the host checks to determine if the line is idle before retransmitting.
Rate this question:
Spanning Tree Protocol is disabled.
All switch ports are assigned to VLAN1.
The flash directory contains the IOS image.
VLAN1 is configured with a management IP address.
All interfaces are set to auto-negotiation of speed and duplex.
Rate this question:
Immediately
After sending its jam signal
After host A and host B have completed transmission
After the jam signal clears and its backoff delay expires
Rate this question:

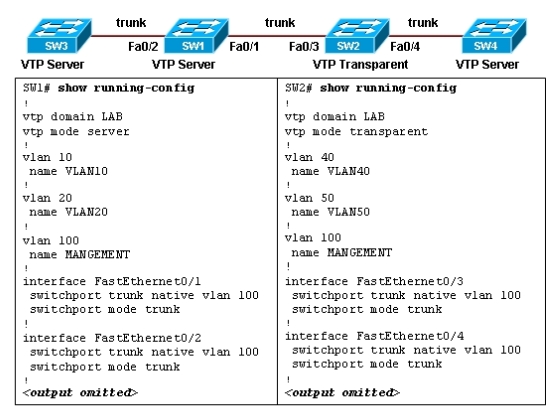

SW3-VLAN 10,20 SW4-VLAN 10,20
SW3-VLAN 10,20,100 SW4-VLAN 10,20,100
SW3-VLAN 10,20,100 SW4-VLAN 10,20,40,50,100
SW3-VLAN 10,20,40,50,100 SW4-VLAN 10,20,40,50,100
Rate this question:
Use SSH version 1.
Reconfigure the RSA key.
Configure SSH on a different line.
Modify the transport input command.
Rate this question:
Switch1# copy startup-config flash:filename
Switch1# copy running-config startup-config
Switch1# copy startup-config running-config
Switch1# copy flash:config.txt running-config
Rate this question:
The service password-encryption command is entered at the privileged EXEC mode prompt.
The service password-encryption command encrypts only passwords for the console and VTY ports.
The service password-encryption command encrypts all previously unencrypted passwords in the running configuration.
To see the passwords encrypted by the service password-encryption command, enter the no service password-encryption command.
Rate this question:
Cisco1
Cisco2
Cisco3
Cisco
Rate this question:

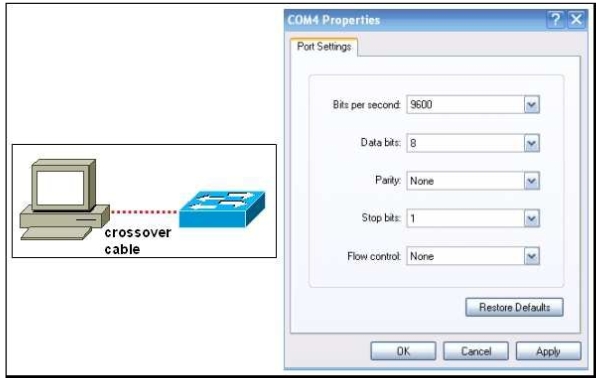

Change the flow control to hardware.
Replace the cable with a rollover cable.
Alter the data rate to 115,200 bits per second.
Move the cable from the console port to an Ethernet port and use Telnet.
Rate this question:
A new RSA key pair is created.
The switch defaults to allowing Telnet connections only.
The switch is no longer able to make SSH connections as an SSH client.
The switch allows remote connections only after a new RSA key pair is generated.
Rate this question:

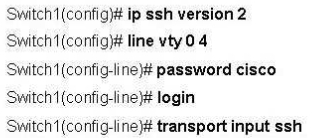

The SSH version number is wrong.
SSH has been configured on the wrong line.
Telnet and SSH cannot be configured simultaneously.
The transport input command is configured incorrectly.
Rate this question:

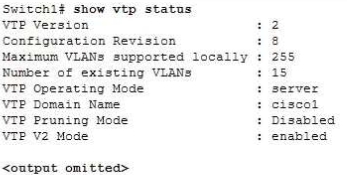

Show VTP Status VTP Version: 2 Configuration Revision: 0 VTP Operating Mode: client VTP Domain Name: cisco1 VTP V2 Mode: enabled
Show VTP Status VTP Version: 2 Configuration Revision: 0 VTP Operating Mode: client VTP Domain Name: cisco03 VTP V2 Mode: enabled
Show VTP Status VTP Version: 2 Configuration Revision: 25 VTP Operating Mode: client VTP Domain Name: cisco1 VTP V2 Mode: enabled
Show VTP Status VTP Version: 2 Configuration Revision: 0 VTP Operating Mode: Server VTP Domain Name: cisco1 VTP V2 Mode: enabled
Rate this question:
Designated ports, non designated ports, root bridge, root ports
Non designated ports, designated ports, root ports, root bridge
Root bridge, root ports, designated ports, non designated ports
Root ports, root bridge, non designated ports, designated ports
Rate this question:
Allows for redundant links by eliminating loops
Provides greater scalability by eliminating collisions
Reduces switch processor load by reducing broadcast traffic on trunk links
Reduces administrative overhead by sharing VLAN databases between switches across the network
Rate this question:
Frames are forwarded to the correct VLAN based on the VLAN tag.
Frames are always forwarded to the native VLAN when exiting a trunk.
Frames are forwarded to the correct VLAN based on the source IP address.
Frames are forwarded to the correct VLAN based on information in the MAC address table.
Rate this question:

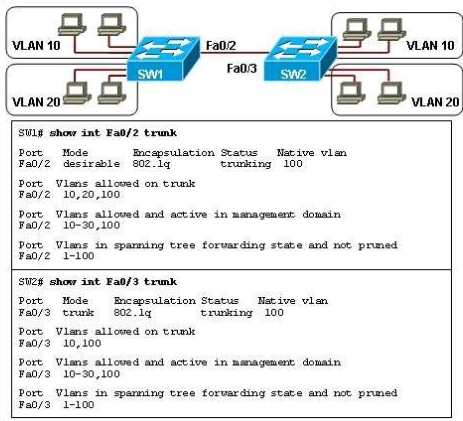

Configure the trunk port in a desirable mode on SW2.
Include VLAN 20 in the list of allowed VLANs on the trunk link on SW2.
Configure VLAN 1 to be the native VLAN for both networks on SW1 and SW2.
Remove VLAN 20 from the allowed VLANs on the trunk link on SW2, an action that will enableall VLANs on the trunk link.
Rate this question:

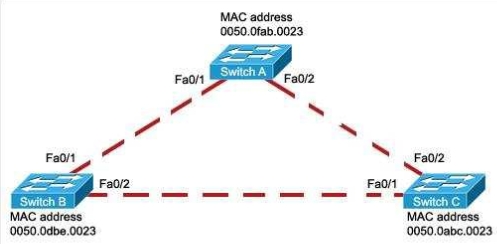

Fa0/1 interface of switch A
Fa0/2 interface of switch A
Fa0/1 interface of switch B
Fa0/2 interface of switch B
Fa0/1 interface of switch C
Rate this question:

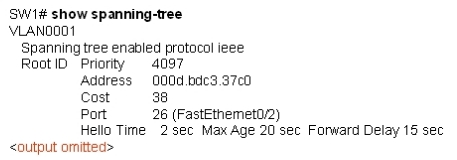

SW1 connects via two Fast-Ethernet links to reach the root switch.
The cost represents the numeric value for the fastest path from SW1 to the root switch.
A cost of 38 is the value that is being advertised out port 26 on the upstream switch, which is closer to the root switch.
The root switch is advertising a cost of 38, which is lower than any other switch that participates in the VLAN0001 spanning-tree domain.
SW1 connects via a Fast-Ethernet link to an upstream switch that in turn is directly connected to the root switch via a Gigabit Ethernet link.
Rate this question:

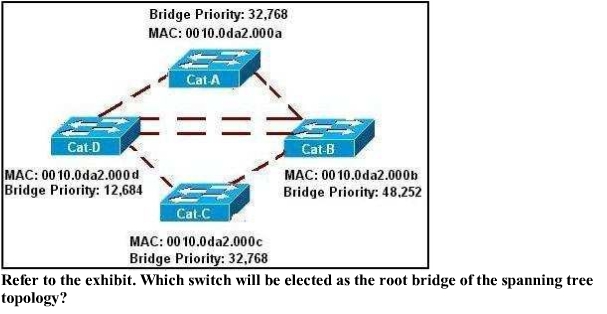

Cat-A
Cat-B
Cat-C
Cat-D
It is only used at Layer 2.
It is configured on routers.
It eliminates Layer 2 loops in network topologies.
It limits the number of valid MAC addresses allowed on a port.
It allows VLAN information to propagate to other switches in the network.
Rate this question:

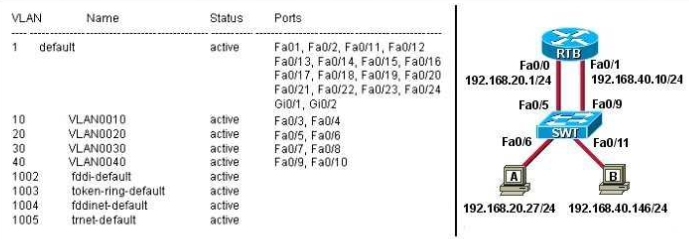

Port Fa0/11 is in the wrong VLAN.
RTB does not have an active routing protocol.
The IP address of computer B is in the wrong logical network.
Router interface Fa0/1 has the wrong trunk encapsulation type configured.
Rate this question:

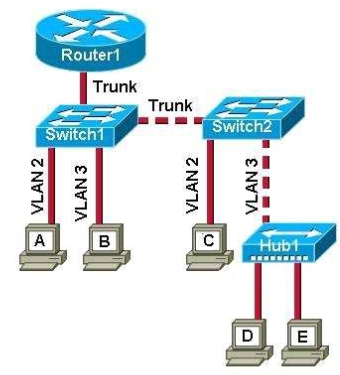

Computer B
Computer B and Router1
Computer C and Router1
Computer B, computer C, computer D, computer E and Router1
Computer A, computer B, computer C, computer D, computer E and Router1
Rate this question:

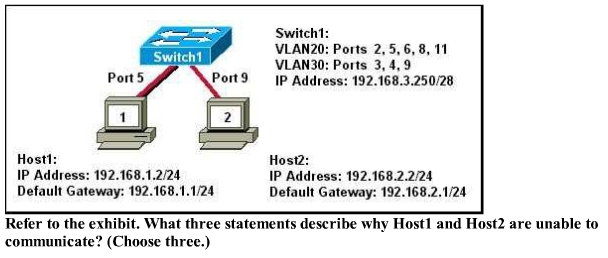

The switch ports are on different VLANs.
The switch IP address is on the wrong subnet.
The hosts are configured on different logical networks.
A router is required to forward traffic between Host1 and Host2.
The host default gateway addresses must be on the same logical network.

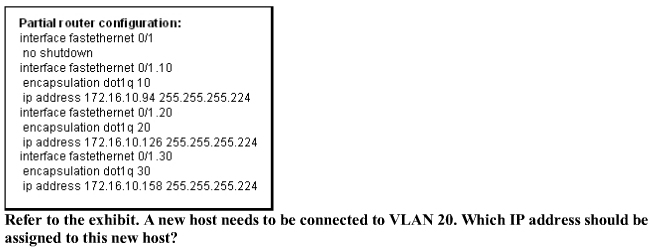

172.16.10.68 /27
172.16.10.99 /28
172.16.10.110 /27
172.16.30.120 /28
172.16.30.146 /27

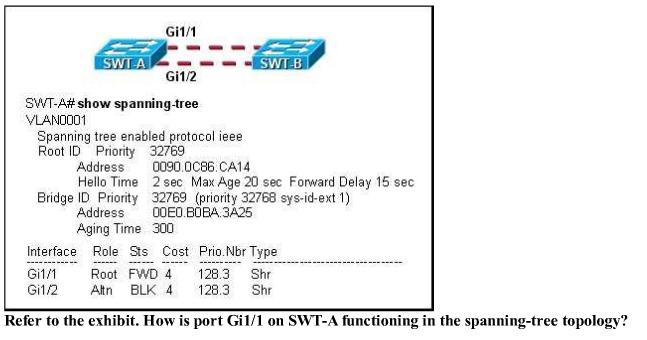

It is sending and receiving data frames.
It is receiving BPDUs, but not sending data frames.
It is participating in the election process by forwarding the BPDUs it receives.
It is receiving BPDUs and populating the MAC address table, but not sending data.
QoS
Routing
Trunking
VoIP
Subinterfaces

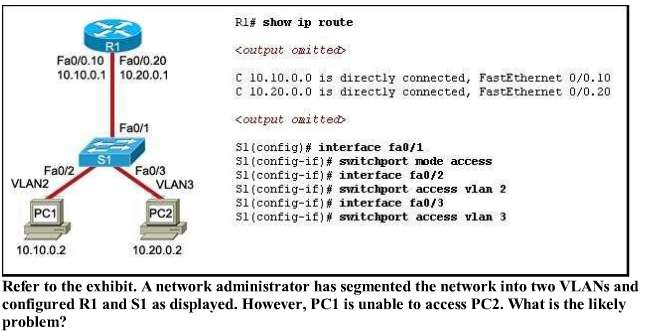

No routing protocol is configured on R1.
The Fa0/1 port of S1 is not a trunk port.
The default gateway address is not set on S1.
Only one physical link between S1 and R1 is configured for inter-VLAN routing.

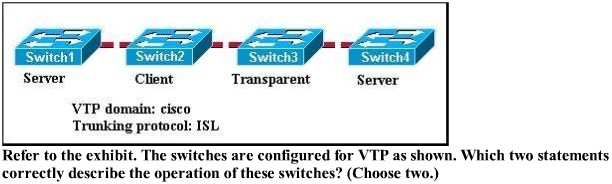

A new VLAN can be added to Switch1 and that information will be added only to Switch2.
A new VLAN can be added to Switch1 and that information will be added to Switch2 andSwitch4.
An existing VLAN can be deleted from Switch4 and that VLAN will be deleted from Switch1and Switch2.
A new VLAN can be added to Switch4 and that information will be added to Switch1, Switch2,and Switch3.
A new VLAN can be added to Switch3 and that information will be added to Switch1, Switch2,and Switch4.
Use a wireless client to associate with the WRT300N and then open a Hyper-Terminal session with the device.
Establish a wired connection with the device and then reboot the attached computer to launch the configuration software.
Establish a wired connection from a computer in the same IP subnet as the WRT300N and enter the default IP address of the device into a web browser on the computer.
Modify the TCP/IP properties of the computer that is connected to the WRT300N so that the computer and the WRT300N exist on the same network. Then reboot the computer to establish a connection.
Rate this question:
BID
LSA
LSU
BPDU
Rate this question:

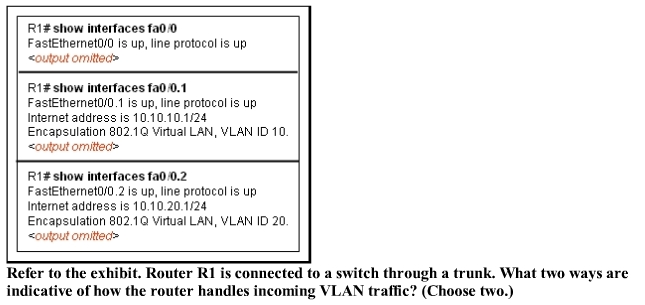

Data from VLAN 20 is not being routed.
Incoming traffic with VLAN ID 1 is processed by interface Fa0/0.
Incoming traffic that has a VLAN ID of 10 is processed by subinterface Fa0/0.1.
The router uses a unique MAC address on VLAN 10 and 20 by adding the 802.1Q VLAN ID to the hardware address.
Traffic inbound on this router is processed by different subinterfaces depending on the VLAN from which the traffic originated.
All VLANs will be allowed across the trunk.
Only VLAN 1 will be allowed across the trunk.
Only the native VLAN will be allowed across the trunk.
The switches will negotiate via VTP which VLANs to allow across the trunk.
Rate this question:

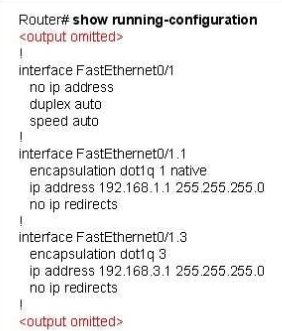

Routing between the 192.168.1.0 and 192.168.3.0 networks will not succeed until a routing protocol is configured on the router.
VLANs have not been appropriately configured on the router subinterfaces.
The configuration is appropriate for a router-on-a-stick network design.
Trunking has been appropriately configured on the router subinterfaces.
An IP address should be applied to interface Fa0/1 for routing to occur.
Rate this question:

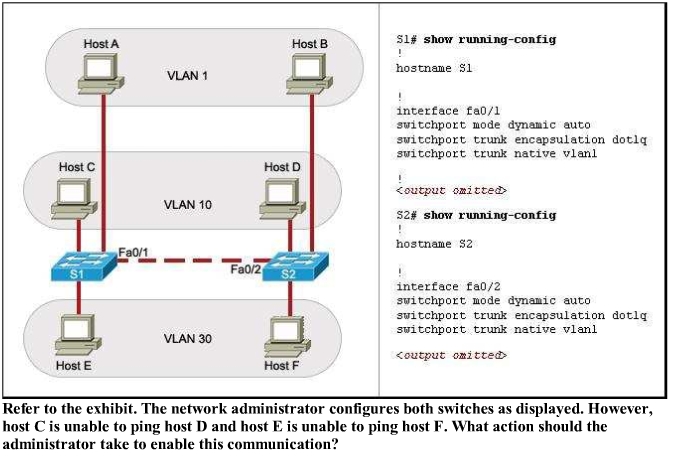

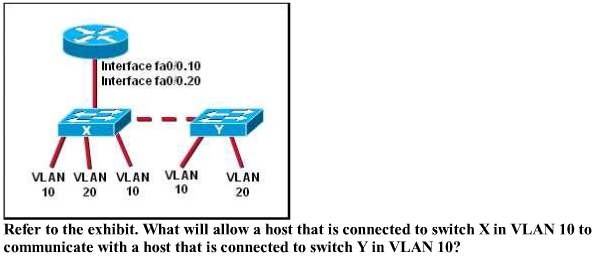

Include a router in the topology.
Associate hosts A and B with VLAN 10 instead of VLAN 1.
Remove the native VLAN from the trunk.
Configure one trunk port in the dynamic desirable mode.
Add the switchport nonegotiate command to the configuration of S2.

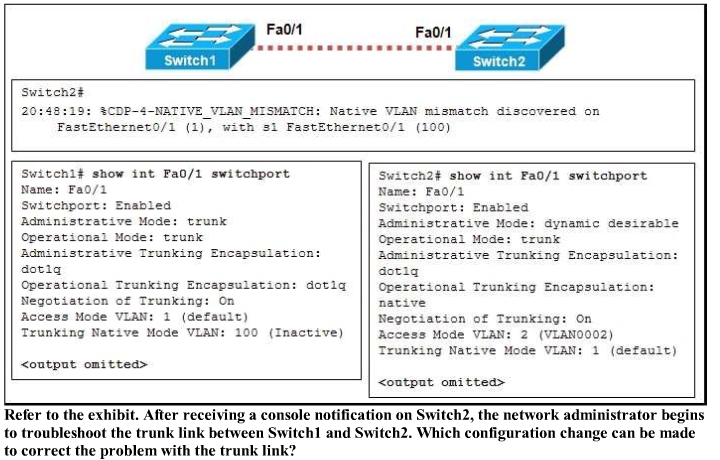

Set the Fa0/1 interface on Switch2 to trunk mode.
Change the trunk encapsulation on Switch2 Fa0/1 to dot1q.
Change the native VLAN on Switch2 interface Fa0/1 to VLAN 100.
Change the access mode VLAN on Switch2 to the default VLAN 1.

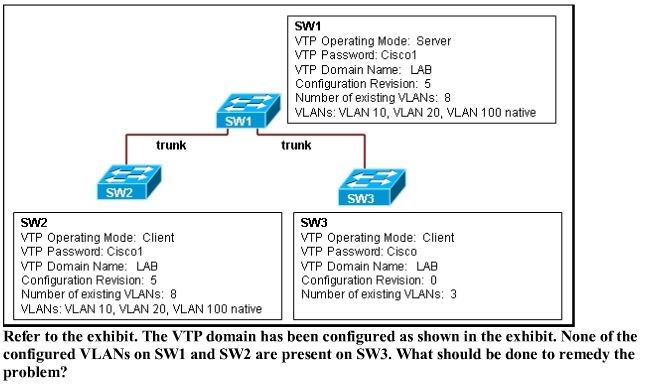

Reconfigure switches SW2 and SW3 in VTP transparent mode.
Reconfigure the VTP password to be consistent on all VTP switches.
Reconfigure all switches as VTP clients to synchronize the VLAN database information.
Reconfigure the VTP server as a VTP client and then return to VTP server mode to reset the configuration revision number.
Rate this question:

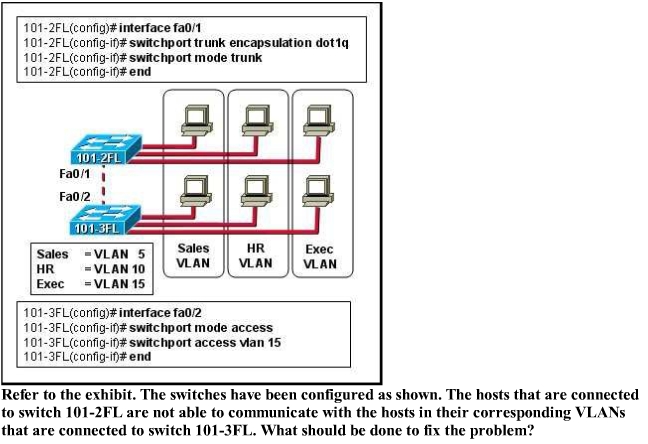

Configure port Fa0/2 on switch 101-3FL as a static trunk link.
Introduce a Layer 3 device or a switch with Layer 3 capability into the topology.
Utilize the switchport trunk allowed vlan all command on switch 101-3FL to permit the VLAN traffic.
Apply IP addresses that are in the same subnet to the interfaces that are used to connect switches101-2FL and 101-3FL.
Configure an IP address on the new switch.
Configure the existing VTP domain name on the new switch.
Configure all ports of both switches to access mode.
Configure the new switch as a VTP client.
Enable VTP pruning.
Rate this question:

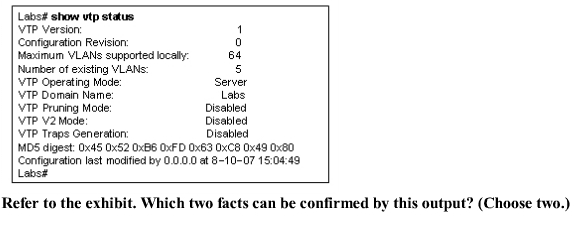

This switch shows no configuration revision errors.
This switch has established two-way communication with the neighboring devices.
This switch is configured to advertise its VLAN configuration to other VTP-enabled switches in the same VTP domain.
This switch will drop all VTP advertisements that come from the switches that are configured in the same VTP domain.
This switch will cause no disruption in the VTP domain operations if the rest of the switches in the same VTP domain have a higher configuration revision number.
The second frame will have to wait to be delivered even if its destination port is available.
The second frame will be delivered to the memory buffer for its destination port.
The second frame will be placed in a common memory buffer to await delivery.
The second frame will be dropped.
Rate this question:

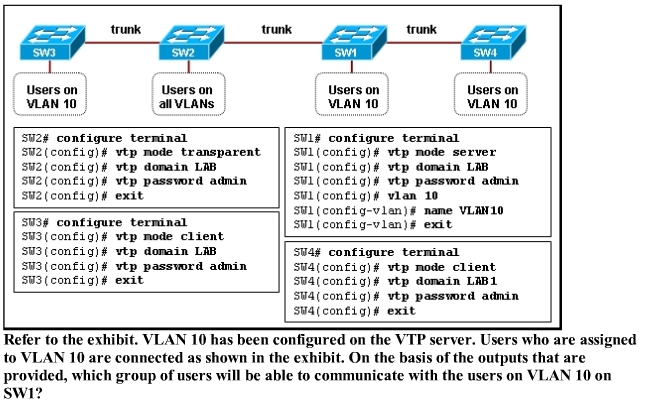

All the users who are connected only to SW2
Users on VLAN 10 who are connected only to SW3
Users on VLAN 10 who are connected only to SW4
Users on VLAN 10 who are connected to both SW3 and SW4
Lower latency
Improved security
Increased redundancy
Higher interface bandwidth
Rate this question:

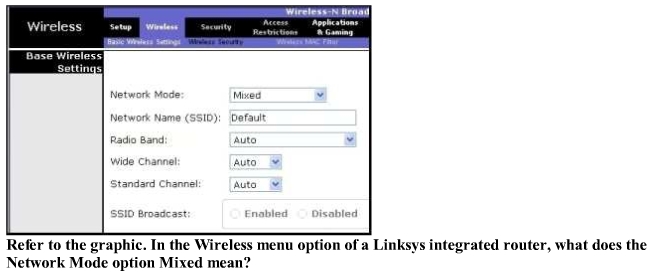

The router supports encryption and authentication.
The router supports both wired and wireless connections.
The router supports 802.11b, 802.11g, and 802.11n devices.
The router supports connectivity through infrared and radio frequencies.

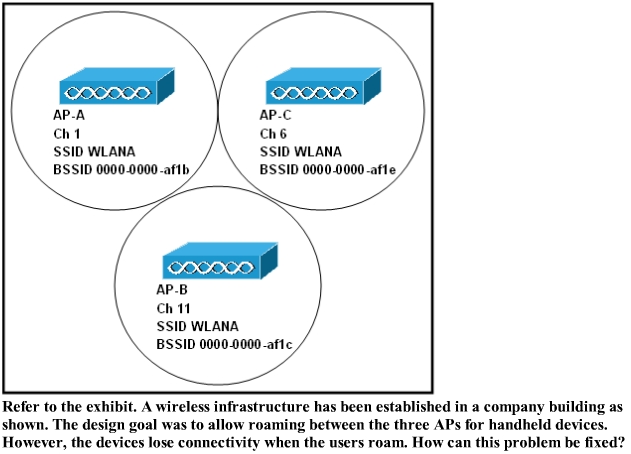

Assign different SSIDs to each AP.
Reconfigure all APs to the same channel.
Use the same BSSID address for each AP.
Reposition the APs so that each area of signal strength overlaps the neighbor by at least10-15%.
DSL modem
Wireless NIC
Wireless router
Wireless access point
Rate this question:
BSS
WEP
SSID
Ad hoc
Channel
Rate this question:
Shared key
SSID
Ad hoc
Channel
Rate this question:

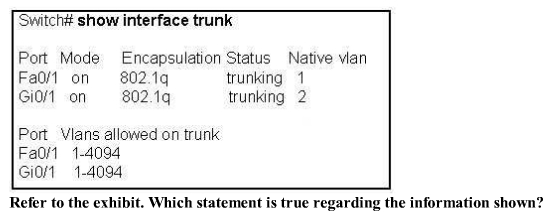

Only one VLAN is currently configured to use the trunk links.
The switch negotiated trunk links for interfaces Fa0/1 and Gi0/1.
A Cisco proprietary protocol is in use for interfaces Fa0/1 and Gi0/1.
Interfaces Gi0/1 and Fa0/1 are allowed to carry data from multiple VLANs.
